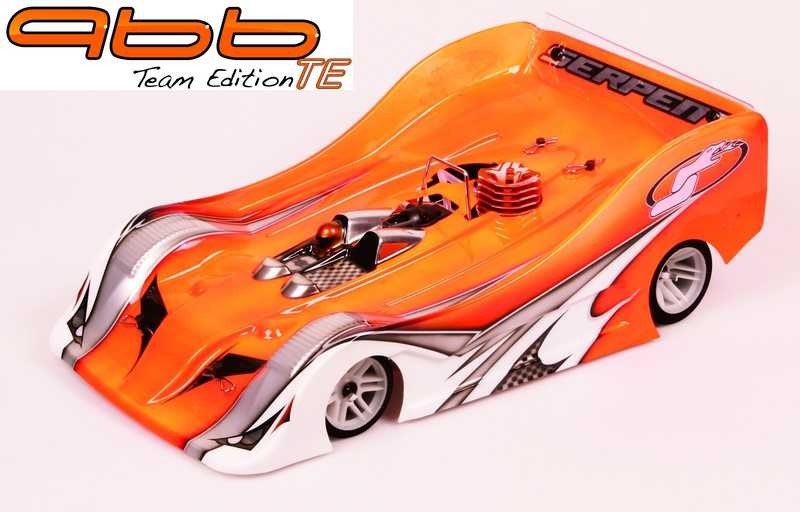

Serpent 1/8 scale 4wd gaspowered rushing automobile framework in Team version. Serpent 966 could be the next generation race-car based on the exceedingly successfull Serpent 960 platform.
Specs:
- Course: 1/8th scale gas on-road, IFMAR rules
- work: High-end competition
- Major games: 2.520kg (based on radio gear)
- Weight: 260mm - 266mm
- Track-width back: 250mm - 260mm
- Track-width front side: Adjustable 296 - 300mm +/-1.7mm
- Wheel base: Adjustable +/- 3mm (backside)
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- Radio dish: 2.5mm carbon fibre
- Suspension: Independent increase wishbone suspension
- Shock absorbers: RCC-X shock absorbers, pre put together
- gas tank: 125cc design
- Back axle: Solid back once again axle
- Front axle: Aluminium front component axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax-II clutch system, difficult anodized alu. gears 16-19T std
- Directions: complete color directions and Set-up guide
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back roll centre
- perhaps not Included: motor, pipeline, human anatomy, radio gear, tires, tires, battery pack
Features:
- SL8 gearbox included, for repaid inertia
- front component aero bumper
- split-type carbon radioplate with flex-control, and front side stiffner/support
- brand new front side top geometry with internal pivots more away and faster top fingers, for a great deal more part entry hold and many other items component rate
- brand-new backside top geometry wth fresh camber-bracket, and top camber-rods alternatively wishbone
- backside lower shockmounts/extenders in carbon, for unique shock-angle
- fresh design tank-top/tank-cap ( identical to S811 )
Backside Suspension
A corner end geometry provides excellent tail grip while offering a very stable car both under stopping along with at leaving corners. The OS 2 uprights sport tiny bearings to reduce un sprung fat, 3 upper supply mounting functions along with the possibility to use shims for changing the roll facilities. Strong reduced wishbones with enough product on the pivot pin and pivot balls, as well as the top hands allow effortless modification for the camber and camber enhance. Longer human anatomy mount fingers offer more down force towards tires yet don't have binding because of their mounting place. Back Body Mount
A corner body mount regarding Serpent 966 may be linked in many other ways to improve or lessen the downforce transmitted through the body on back tires. There are considerably longer human anatomy mount arms, being installed towards a large part uprights at axle level which provides more down force toward tires. The complete set up can be without binding, meaning there's no limitation linked to motion on suspension system system.
Back Anti-roll Bar
The cable kind backside anti-roll club regarding Serpent 966 is ball-raced for extra accuracy and many other things precision.The blade type back anti-roll club is optional.
Adjustable right back Roll Center and Camber Increase
concerning the Serpent 966-TE a corner roll centre is adjustable by using offset composite inserts, which spot the wishbone pivot pins connected with reduced wishbones.The straight back camber enhance may also be modified through exact same technique but regarding top backside wishbone pivot pins. The usage of composite inserts means both alterations could be merely made track part.
right back Axle
made out of Spring steel, the solid rear axle is very durable and ultra strong supplying an ideal base to install a sizable component drive pulley. A steel pin secures the pulley and an o-ring keeps it in position.
Steering Servo Mounting
The steering servo is installed concerning the appropriate part straight to the underside concerning the radio dinner and hangs without the virtually any product. The steering system makes use of a centrally installed servo-saver, which features adjustable spring stress and includes four Ackerman choices, utilizing inserts, to aid fine-tune the 966-TE steering faculties. Adjustable steel track rods with left and right threads are standard.
Receiver Mounting
The receiver in the Serpent 966 may be installed in 2 various roles, in accordance with whether you select the laydown throttle servo mounting and/or traditional upright throttle servo mounting.
In the event that you mount the throttle servo utilising the laydown setup, the receiver is initiated regarding left component linked to the radio dish, involving the car's vehicle's gas tank and exhaust system.
In the event that you mount the throttle servo using the traditional upright configuration, the receiver (and protective target) may be installed near the throttle servo.
The advantage of these alternative mounting roles is it gives choices for electronic devices placement, alongside options for eliminating any recurring disturbance conditions which will possibly happen.
car's gas tank
Serpent have actually really in reality provided the 125cc gas tank with a silicone rubber seal the vehicle's gas tank lid that stops leakage and therefore provides more constant motor performance. Made out of silicone plastic, the most recent seal was in fact shaped to make a great seal round the opening concerning the tank and enabling the tank lid to shut totally.The tank is constructed of a newer stronger material. The tanks have significantly more opposition to shattering in the eventuality of huge effect and customizations towards the lid pivot pin spot further ensure a totally sealed tank. The most recent product can also be less heat delicate and may keeps it contour better additionally whenever hot. The tank supplies the possibility to mount tiny spacers inside to fine-tune the total amount.
right back Shock Tower
a sizable part shock tower regarding the Serpent 966 is comprised of 3mm carbon fiber, which once again makes this component ultra crash resistant. The trunk surprise tower tasks 4 surprise mounting jobs that will help you fine-tune your automobiles managing track component.
Fast publish Wheel System
The Serpent 966-TE comes standard with both spring-loaded aluminium fast launch levers.
Quick-change
This dependable and time-saving system permits very swift tire changes during x-country occasions, permitting you to get back in track in only a little bit time as you are able to.
Adjustable Wheelbase
As a consequence of the key wishbone setup, it is possible to quickly adjust the car's wheelbase through maintaining of only one top and reduced caster clip for every single component towards car. Towards back you'll put shims in-front or through straight back associated with the paid rear wishbones to have plus or minus 3mm.
Modification
The Serpent 966 is a top-level competition racer which is for that reason totally adjustable. The racer can transform numerous settings effectively and effectively, such as the suspension system system system geometry. The down stops is accessed and modified with maximum effect. Caster, track-width, toe-in, camber, camber enhance, and wheelbase can also be modified with ease, in addition to the front side and straight back roll-centre and back human anatomy mount mounting angle.
Bearings
offered sealed top-quality lightweight bearings throughout, the drive train is very efficient and runs very smoothly.
30 bearings in general including 3 one-ways.
Gearbox
The SL8 2-speed gearbox is battle proven and is simple to adjust and build because of its effortless design. The gearbox features large ball bearings for additional durability and smoother rotation. The 8mm shaft offer increased safety.The fresh 2-speed gears are setup towards providers with three little screws and so are obtainable in an overall total collection of gears available in combination with pinions the Centax-II clutch.
High Res pic - Exhaust springtime
Exhaust Mounting Spring
using a spring-type mounting cable to separate your lives vibrations, the springtime is linked to your automobile through an aluminium mounting post connected to the air dish.
Centax-II Clutch
The Centax-II clutch system features big ball bearings (a 5x13mm and a 5x10mm) also a big thrust bearing (5x10mm). This increases durability and ultra-free motion of components. Featuring an externally-adjustable clutch area spacing method, and a forward reasoning pivoting flyweight system.
Motor Mono block
The strong engine mono block that takes advantage of the excess area where the engine is initiated on LCG (minimal Center of Gravity) framework dish. Even though the advantages of the mono block system, to stop the engine flexing, the block permits the motor become set up reduced in the framework by 2mm. Due to the motor being lowered the car is obviously given a smaller diameter flywheel.
Drive Belt System
The Serpent 966-TE utilizes three Kevlar-reinforced main drive belts, driven by a number of composite pulleys attached to aluminium pulley adapters. This enables for a tremendously smooth and efficient drive system which could withstand serious punishment.
Throttle Servo Mounting
The 966-TE provides two opportunities the mounting regarding the throttle servo, to begin which will be the the traditional stand-up throttle servo layout. To reduce the automobiles centre of gravity addititionally there is an alternate to set up the throttle servo in friends down configuration. This moves the hefty engine and also other components of the servo lower as well as the within allowing for better weight circulation and C of G.The set straight down throttle servo installation should match the standard servo mounting room, hence permitting the straightforward modification over between designs. In the event that you choose to utilize the conventional upright mounting, you can install the receiver near the throttle servo. Otherwise the receiver is in its standard location concerning the left part of this radio plate.
Chassis Stiffeners
Another function will be the two carbon-fibre part mounted framework stiffeners. These meals form a good connection betwixt your front part and right back section of the 960, and are also usually mounted right to r / c dish bracket and to the trunk bulkheads. They promote the framework tightness, a vital condition to help with making effective usage through the higher level suspension system system system adjustment options. The remaining framework stiffener doubles as a belt-tensioner owner to with a lengthier slot allow changes.
Front Anti-roll Bar
The Serpent 966-TE comes standard with an adjustable front anti-roll club. By rotating both blades, you'll adjust the tightness. Centering with an advanced adjuster eccentric.
Front Axle
Leading axle is made of high-grade aluminium possesses the highest quality one-way bearings lubricated with one-way lube. This guarantees a frequent drive on front Spring metal drive cups.
principal back brackets
Anodized, cnc machined, aluminum primary backside axle supports with coated alu eccenters; more rigid, better back axle help for an extremely genuine running back shaft, easy belt-tensioning, fast access for upkeep. Using the eccenters you'll be able to choose 3 jobs for rear- gear tensioning. By detatching the eccenter making use of one side the rear shaft with pulley and gear might be accessed quickly. Principal back helps are machined maximum to repaid fat, but retain rigidness simultaneously. Pins are pre-pressed into the base with this brackets which in turn seat towards positioning holes inside framework. Precise and safe.
Enhanced RCC Shock Absorbers
The RCC shock absorbers are super-smooth and extremely very easy to create. Machined from metal and unique since the shock systems only available towards bottom half, they are actually an easy task to assemble. They include a collection piston no more use a diaphragm just like the final shocks but a foam. The effect is an ultra-smooth and air-free shock absorber due to the self-bleeding system incorporated toward design.The seal-package into the shocks is enhanced ( unique x-ring / bushing) while offering better assistance on rod. Little modification, BIG benefit.
Lower mounted brake-assembly for reduced LCG. Spring-loaded brake-plates slides on polished metal shafts. Ready-to-run braking system plate/pads construction with completely new friction stopping system product. The ball-raced hard anodized brake-cam push the 2 larger pins that are seated within the aluminium bracket, facing the brakeplat, to create really smooth along with force towards dish.
Brake-system
The braking system system guarantees strong and efficient stopping power. The stopping system pads include two metal dishes utilising the friction material pre-baked towards meals, together with stopping system disk is manufactured out of twin ventilated discs with an air-cooling alu centre.The groundbreaking stopping system sits low in the vehicle to simply help LCG. The unit is efficiently accessable for maintenance, because really available design.
The spring-loaded bar-pads slip on polished metal pins and are also triggered through the ball-raced braking system cam, a sizable pin moves horizontally to stimulate the braking system system. As a consequence of the horizontal action of pin, and never the twisting of brake cam, all distortion of this kind is eradicated plus the stopping system pads are evenly pressed together. The brake cam is supported by ball-bearings for smooth, accurate action. This further enhances the precision and exemplary stopping energy associated with stopping system.
Chassis Dish
The backbone of the car could be the framework plate, which includes been CNC-machined from incredibly rigid american 7075 T6 - 5mm aerospace-quality aluminium and recreations a diverse front component starting to manage the best anti-roll club. A cooling slot underneath the motor assists assist heat control while chamfered sides stop the framework from getting on kerbs providing it better general ground approval regarding track. It houses the power packs, that's installed to the newly-designed carbon fiber battery mounting meal and is held make by four screws, screwed right to the chassis meal it self. This 966-TE dinner in addition has been machined to merely accept the optional front part stiffener meal.
Front Bumper and Body Mount
top human anatomy mount of Serpent 966 is screwed lower combined with bumper, enabling several flex in the body post mounts whilst maintaining the tightness related to fundamental installation. The human body mount is held further through two screws mounted from part.As utilising the back roll centre, the key roll centre can be easily modified. The modification is performed by removing leading top suspension system system brackets and placing spacers within the brackets thereafter re-attaching them towards automobile.
The 966 comes with anodised aluminium front part top suspension brackets being machined from little aluminium. These appealing pieces are incredibly strong and supply great protection in case of much effect. One other great advantageous asset of this part is because of the utilization of inserts, with an offset opening, it is possible to adjust the pivot spot associated with top front side wishbones.
Another good design function is the fact that exact same front suspension system bracket could possibly be utilized on both remaining and right sides regarding the vehicle.
Thew brand new aero bumper may be used closed, or partially available, by reducing the aligned inner parts.
Steering Obstructs
These Wide offset (WOS) steering obstructs works extremely well in 2 various designs by swapping the medial part linked to car they're typically set up on. These customizations, based independently the steering blocks are used on, will either provide more change in on part entry, or more on power steering at corner exit.
The included eccenters make certain the axle is raised above centre line, which improves the consequence as a result of this groundbreaking configuration and because of the utilization of eccenters the bearings are now actually in addition smaller and lighter, reducing un sprung fat.
Front Suspension System
the very best anti-roll club levers, which are generally utilising the down stops allowing easier tweak. They put inwards, inside bearing-blocks, rendering them more effective considering less flex. The greatest repaid hands take care of leading anti-roll club destination.
Battery Mounting Plate
The carbon fibre battery mounting meal is made to really have the ability to accommodate a number of battery pack configurations, as an example the main-stream 5 mobile pack. The battery pack mounting dish includes a 2mm black colored carbon fibre which is installed towards framework meal by four countersunk screws.
Radio Plate assist Bracket
the atmosphere meal support bracket, place directly at motor, moreover will act as the mounting point for the roll over club.
Aluminium center bracket
The Serpent 966 comes provided an aluminium center bracket as standard. Changing the conventional composite variation, the current component is stiffer consequently decreases flex within axle which prolongs residing of belts and pulleys.
Adjusting nut for pivot balls
These adjusting nuts are produced from Nylon and change the earlier aluminium nut with synthetic insert that may not merely makes installation easier, additionally decreases un-sprung fat. Reducing the weather used now also decreases part perform so it creates a much more accurate management vehicle and also whilst the material utilized is self-lubricating the movement of pivot ball can be smooth throughout use.
Pivot Balls
produced from Spring steel, these polished 8.5mm pivot balls are virtually unbreakable and guarantee the smoothest suspension system system movement feasible.
Driveshafts / wheelaxles
Serpent just make use of the highest-quality drive train inside their cars. The 966 vehicle comes offered the best springtime steel drive shafts capable of withstanding constant punishment; these shafts are ultra durable and extremely stiff helping you to truly put your capacity to the tarmac.
Front CVD and back regular dogbones
produced from Spring steel, leading and right back wheel axles are particularly durable and ultra strong. These are typically a precision complement the biggest thing bearings whenever mounted aided by the supplied shims to make certain a great precise wheel fit. The best axle additionally accocunts for the main CVD shafts which can be one of them kit and may consequently be used with both the supplied quick launch system and/or optional wheel peanuts.
Front Shock Tower
Leading shock tower related to Serpent 966 is made of 3mm carbon fibre, making this component ultra crash resistant. The key shock tower additionally features two surprise mounting jobs to help you fine tune your car or truck for just about any track conditions.
Adjustable Front Belt Tension
A fantastic function is the power to adjust the stress using this front side gear. The simple-to-use bearing eccentric holders enable simple and quick environment.
The 966-TE features a split kind radioplate. The larger central components links with a pole to your front part stiffner. The main component front side screws which url to your bulkheads could be loosened to make more flex; the pole gets a handle about the flex.
evaluation unveiled that flex inside front side has more effect set alongside the rear or primary section of the framework.
The 966-TE included the modern developed Serpent gearbox with 8mm shaft and new flange, bell and gears. an entirely balanced gearbox with suprisingly low inertia, and an excellent bearing sitting.
Durable and ultra fast shifting.
The brake-disk and pulley-adaptor with 3 pins is modified, and a fresh alu hardcoated component pully in included to fit the 8mm shaft.
buttocks connectors
Tail connectors in synthetic and alu, to influence tail flex.
