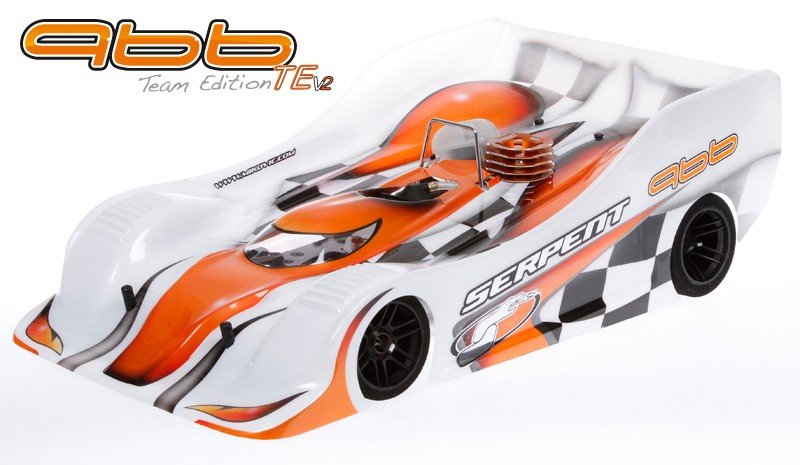

Serpent 1/8 scale 4wd gaspowered rushing automobile framework inside Team edition v2.
Specs:
- program: 1/8th scale gas on-road, IFMAR instructions
- function: High-end competition
- Weight: 2.520kg (according to radio gear)
- Track-width back: 260mm - 266mm
- Track-width front: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension
- Shock absorbers: RCM surprise absorbers
- vehicle's gas tank: 125cc design
- straight back axle: Solid back axle
- Front axle: Aluminium front side axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax real motion clutch system, hard anodized alu. gears 16-19T std
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back go centre
Features:
- Centax genuine motion clutch system
- RCM shocks
- SL8 gearbox included, for paid down inertia
- front side aero bumper
- split-type carbon radioplate with flex-control
- Brand brand new front top geometry with interior pivots more away and smaller top arms
- Brand groundbreaking back top geometry wth brand new camber-bracket and upper camber-rods as an alternative wishbone
- Back paid off shockmounts/extenders in carbon
- Brand brand new design tank-top/tank-cap ( like S811 )
buttocks connectors
Buttocks connectors in plastic and alu, to influence buttocks flex.
Steering Obstructs
These Wide offset (WOS) steering obstructs works extremely well in 2 various designs by swapping the medial part linked to automobile they are typically installed on. These customizations, based on their own the steering obstructs can be utilized on, will either present more change in on component entry, or higher on energy steering at component exit.
The included eccenters ensure that the axle is raised more than centre line, which improves the end result due to this brand new configuration and due to the usage of eccenters the bearings are actually furthermore smaller and lighter, reducing un sprung fat.
Front Bumper and Body Mount
the best human body mount of Serpent 966 is screwed lower combined with bumper, allows for a few flex in the torso post mounts whilst maintaining the stiffness from general set up. Your body mount is held further through two screws mounted through the part.As due to the straight back roll centre, leading roll centre could be efficiently modified. The modification is completed by removing the best top suspension system system system brackets and inserting spacers underneath the brackets and re-attaching them toward vehicle.
The 966 includes anodised aluminium front part top suspension system brackets which are often machined from a person small aluminium. These attractive pieces are incredibly strong and great protection in the event of huge effect. One other great advantageous asset of this part usually because of the utilization of inserts, with an offset opening, now you can adjust the pivot destination the top front side component wishbones. Another good design feature would be the fact that exact same front suspension system bracket can be utilized on the left and right edges of the automobile.
Thew brand new aero bumper may be used closed, or partially available, by detatching the aligned interior components.
Chassis Plate
The backbone connected with vehicle could be the chassis dinner, including been CNC-machined from excessively rigid american 7075 T6 - 5mm aerospace-quality aluminium and activities an extensive front beginning to change leading anti-roll club. A cooling slot in engine assists assist heat control while chamfered edges stop the chassis from getting on kerbs providing it better basic ground approval regarding track. It houses the battery, which are often installed towards the newly-designed carbon fiber battery power mounting dish which is held put up by four screws, screwed directly into the framework dish it self. This 966-TE dish has also been machined to simply accept the optional front side stiffener meal.
Brake-system
The stopping system system guarantees strong and efficient stopping energy. The braking system pads contain two metal dishes along with the friction product pre-baked towards dishes, along with the stopping system disk consists of dual ventilated discs with an air-cooling alu centre.The amazing stopping system sits reduced in the automobile to simply help LCG. The unit is effortlessly accessable for upkeep, because extremely open design.
The spring-loaded bar-pads wear refined steel pins and are also triggered through the ball-raced braking system cam, a sizable pin practices horizontally to stimulate the brake system. As a result of the horizontal action from the pin, rather than the twisting of this brake cam, all distortion of the sort is eradicated plus the braking system pads are evenly forced together. The stopping system cam is supported by ball-bearings for smooth, accurate action. This further escalates the accuracy and exemplary stopping energy associated with the stopping system.
Brake 966
Lower mounted brake-assembly for reduced LCG. Spring-loaded brake-plates slides on polished metal shafts. Ready-to-run stopping system plate/pads assembly with new friction stopping system product. The ball-raced hard anodized brake-cam push both bigger pins which are seated inside the aluminium bracket, from brakeplat, to make acutely smooth as well as force towards meal.
RCM Shock Absorbers
The RCM shock absorbers are super-smooth and intensely a facile task to create. Coated aluminium threaded shock-bodies, perfect pistons, smooth o-ring-bushing package, effective silicone membranes, durable hardened shock-rods, the works !
major right back brackets
Anodized, cnc machined, aluminum main back axle supports with coated alu eccenters; more rigid, better back axle assistance for an exceptionally real working back shaft, effortless belt-tensioning, comfortable access for upkeep. Utilizing the eccenters you are able to select 3 jobs for rear- belt tensioning. By reducing the eccenter for a passing fancy component a corner shaft with pulley and gear might accessed effectively. Major back aids are machined maximum to paid down fat, but retain rigidness besides. Pins are pre-pressed towards base of brackets which in turn seat in to the positioning holes in framework. Precise and safe.
Front Side Suspension System
the leading anti-roll club levers, which can be because of the down stops allowing easier tweak. They placed inwards, inside bearing-blocks, helping to make them greater as a consequence of less flex. Leading lower fingers care for the leading anti-roll club location.
Battery Mounting Plate
The carbon fiber battery power mounting dish have been developed to have the ability to accommodate many battery pack designs, like the traditional 5 cellular pack. The battery power mounting dish is constructed of a 2mm black carbon fiber and it's also set up toward framework meal by four countersunk screws.
Broadcast Plate Support Bracket
the air dish help bracket, spot right while you are viewing engine, furthermore acts as the mounting point the roll over club.
SL8 gearbox
The 966-TE included the most up-to-date developed Serpent gearbox with 8mm shaft and amazing flange, bell and gears. a perfectly balanced gearbox with suprisingly low inertia, and a great bearing sitting.
Durable and ultra fast shifting.
The brake-disk and pulley-adaptor with 3 pins was modified, and a whole new alu hardcoated side pully in included to complement the 8mm shaft.
Split-type radioplate
The 966-TE features a split type radioplate. The higher costly primary parts links with a rod towards front side stiffner. The main component front screws which link toward bulkheads is loosened to generate more flex; the pole could possibly get a handle regarding the flex.
evaluating unveiled that flex inside front component has more impact compared to the trunk or top an element of the framework.
Adjustable Front Belt Tension
good feature could be the capacity to adjust the stress about the front gear. The simple-to-use bearing eccentric holders permit simple and fast environment.
Front Shock Tower
Leading surprise tower of Serpent 966 is made of 3mm carbon fibre, causeing the component ultra crash resistant. The main element shock tower also features two surprise mounting jobs to assist you fine tune your car or truck or vehicle or vehicle for just about any track conditions.
Driveshafts / wheelaxles
Serpent simply make use of the highest-quality drive train inside their automobiles. The 966 vehicle comes provided perfect Spring metal drive shafts proficient at withstanding constant punishment; these shafts are ultra durable and intensely rigid allowing you to place all of your capacity to your tarmac.
Front CVD and right back regular dogbones.
Created from Spring steel, leading and straight back wheel axles are especially durable and ultra strong. They truly are a precision complement the important thing bearings whenever installed utilising the provided shims to be certain a decent precise wheel fit. Top axle additionally comprises section of the CVD shafts being included in this kit and may for this reason be used with the supplied fast launch system and/or optional wheel nuts.
Pivot Balls
created from Spring metal, these polished 8.5mm pivot balls are virtually unbreakable and guarantee the smoothest suspension system system movement feasible.
Adjusting nut for pivot balls
These adjusting peanuts are produced from Nylon and change the sooner aluminium nut with artificial insert that will not just makes installation easier, it decreases un-sprung fat. Reducing the parts used now furthermore decreases component perform such that it produces an even more accurate handling vehicle so that as this product utilized is self-lubricating the motion for this pivot ball will stay smooth throughout usage.
Aluminium center bracket
The Serpent 966 comes supplied with an aluminium center bracket as standard. Changing the typical composite variation, the present day part is considerably stiffer and so decreases flex within axle which prolongs lifespan of belts and pulleys.
Front Axle
leading axle is manufactured out of high-grade aluminium and possesses the very best quality one-way bearings lubricated with one-way lube. This ensures a day to day drive on front Spring Steel drive cups.
Front Anti-roll Bar
The Serpent 966-TE comes standard with a variable front side anti-roll club. By rotating the 2 blades, it really is very easy to adjust the stiffness. Centering with a classy adjuster eccentric.
Chassis Stiffeners
Another function will be the two carbon-fibre component mounted framework stiffeners. These dishes form a good connection relating to the front side and right back part of the 960, and are usually set up to r / c meal bracket along with a big component bulkheads. They boost the framework tightness, an important condition generate effective utilization of advanced suspension system modification choices. The left chassis stiffener increases as a belt-tensioner owner to with a long slot enable improvements.
car's gas tank
Serpent have actually provided the 125cc gas tank with a silicone plastic seal the vehicle's gas tank lid that stops leakage and so provides more constant engine performance. Created from silicone plastic, the latest seal is shaped generate an excellent seal throughout the opening of this tank and allowing the tank lid to shut entirely.
The tank is manufactured away from a more current stronger item. The tanks do have more opposition to shattering in the event of huge effect and adjustments on lid pivot pin spot further make sure a perfectly sealed tank. This brand new product may also be less temperature painful and sensitive and can keeps it contour better also whenever hot. The tank supplies the replacement mount little spacers inside to fine-tune the amount.
Receiver Mounting
The receiver on Serpent 966 could be installed in 2 various positions, influenced by whether you select the laydown throttle servo mounting and/or main-stream upright throttle servo mounting.
If you mount the throttle servo using the laydown setup, the receiver is attached to the rest of the part concerning the radio meal, involving the vehicle's gas tank plus the exhaust system.
In the event that you mount the throttle servo using the traditional upright setup, the receiver (and protective address) are installed next to the throttle servo.
The benefit of these alternative mounting roles is it includes alternatives for gadgets positioning, in addition alternatives for eliminating any recurring disturbance problems that may possibly occur.
Steering Servo Mounting
The steering servo is connected to the greatest part directly to the underside about the radio plate and hangs without other item. The steering system makes use of a centrally set up servo-saver, which features adjustable springtime anxiety and it is offered with four Ackerman alternatives, by making use of inserts, to simply help fine-tune the 966-TE steering traits. Adjustable metal track rods with remaining and right threads are standard.
straight back Axle
made out of Spring metal, the solid straight back axle is quite durable and ultra strong providing an excellent base to include the trunk drive pulley. A steel pin secures the pulley and an o-ring keeps it constantly set up.
Adjustable back Roll Center and Camber Increase
concerning the Serpent 966-TE a corner roll centre is adjustable making use of offset composite inserts, which spot the wishbone pivot pins the reduced wishbones.The right back camber increase can be modified through same method but regarding the top straight back wishbone pivot pins. The usage of composite inserts means both corrections can be simply made track component.
Straight back Anti-roll Bar
The cable type right back anti-roll club into the Serpent 966 is ball-raced for extra accuracy and even more precision.The blade kind backside anti-roll club is optional.
Right back Body Mount
a big part human anatomy mount inside the Serpent 966 might be connected in many various ways to increase or reduce steadily the downforce sent from human anatomy toward back wheels. You will discover longer body mount fingers, and this can be installed towards backside uprights at axle degree which provides more down force towards tires. The whole installation may also be without binding, meaning there is absolutely no limitation of motion regarding suspension system.
Rear Suspension System
a sizable part end geometry provides excellent buttocks hold and will be offering a tremendously stable car both under stopping and also at exiting corners. The OS 2 uprights sport small bearings to minimize un sprung fat, 3 top supply mounting functions as well as the possibility to make use of shims for changing the roll facilities. Strong paid off wishbones with adequate item through the pivot pin and pivot balls, and also the upper hands allow effortless modification concerning the camber and camber enhance. Longer human body mount arms provide more down force towards the tires yet don't have any binding for their mounting location.
straight back Shock Tower
The trunk surprise tower of Serpent 966 consists of 3mm carbon dietary fiber, which yet again makes this component ultra crash resistant. A corner shock tower activities 4 surprise mounting functions to utilize you fine-tune your automobiles managing track component.
Fast launch Wheel System
The Serpent 966-TE comes standard with both spring-loaded aluminium fast release levers.
Quick-change
This dependable and time-saving system allows exceptionally swift tire alterations during cross-country races, enabling you to get back on course in just a little bit time as you possibly can.
Adjustable Wheelbase
as a result of leading side wishbone configuration, you'll be able to effortlessly adjust the car's wheelbase through placement of 1 top and paid off caster clip for each part of this automobile. Inside rear you can spot shims in-front or in right back connected with spine wishbones to get plus or minus 3mm.
Throttle Servo Mounting
The 966-TE provides two possibilities the mounting in regards to the throttle servo, firstly which will be the the first stand-up throttle servo layout. To reduce the cars centre of gravity there is an alternative to install the throttle servo in a lay out configuration. This moves the heavy engine as well as other components of the servo paid off and also to the within allowing better fat circulation and C of G.
The construct throttle servo create was created to match the conventional servo mounting area, thus enabling the easy modification over between designs. In the event that you opt for the traditional upright mounting, it is possible to mount the receiver next to the throttle servo. Otherwise the receiver is in its standard place in the rest of the component pertaining to radio meal.
Drive Belt System
The Serpent 966-TE makes use of three Kevlar-reinforced main drive belts, driven by some composite pulleys installed on aluminium pulley adapters. This permits for a truly smooth and efficient drive system which may withstand severe punishment.
Engine Mono block
The strong engine mono block that takes advantage of the surplus area where the motor is set up on the LCG (minimal Center of Gravity) framework dinner. Too because the great things about the mono block system, to remove the motor flexing, the block allows the motor be installed reduced the framework by 2mm. As a result of motor being lowered the automobile is provided with a substandard diameter flywheel.
Centax True movement Clutch
Serpent presents new Centax clutches for 1/8 onroad. Numerous variations happen tried, in the final outcome it still comes near to the initial idea.within the modern development the tapered type is relocated from flywheel towards force dish as a substitute, improves punch and reliability. Serpent continues the use of the hard Centax spring to create preload, after the less critical and faster to manage.
The 1/8 scale Centax genuine motion clutch, gets the black colored colored colored footwear and aluminum cutch housing as standard. Yellowish and red footwear is tried aswell, as well as the steel or light steel clutch housing.
Exhaust Mounting Spring
utilizing a spring-type mounting wire to separate vibrations, the springtime is from the automobile by means of an aluminium mounting post connected to the air meal.
Gearbox
The SL8 2-speed gearbox is race proven and it is quite simple to adjust and assemble because of its effortless design. The gearbox features big ball bearings for additional durability and smoother rotation. The 8mm shaft offer increased security.The fresh 2-speed gears are set up towards providers with three small screws and they're obtainable in the full total array of gears obtainable in combination with pinions for the Centax-II clutch.
Bearings
Given sealed top-quality lightweight bearings throughout, the drive train is very efficient and operates incredibly smoothly.
30 bearings all together including 3 one-ways.
Adjustment
The Serpent 966 is a top-level competition racer which is therefore fully adjustable. The racer can transform many settings easily and efficiently, including the suspension system geometry. The down stops is merely accessed and simply modified with optimum impact. Caster, track-width, toe-in, camber, camber increase, and wheelbase might be modified efficiently, combined with front side and right back roll-centre and straight back body mount mounting angle.
