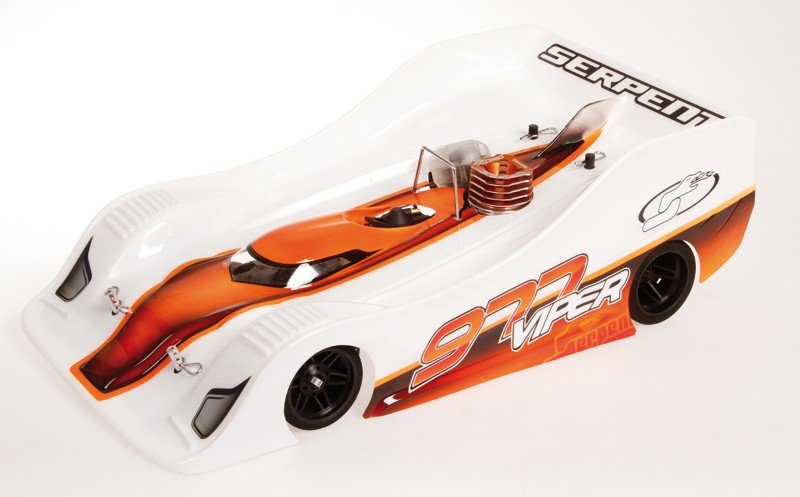

Serpent 1/8 scale Viper 977 race car. 2013-2014 IFMAR TQ and World Champion, Japan Tadahiko Sahashi with Viper 977 Gaspowered toplevel racecar with 4wd, belt-drive, Centax genuine movement clutch, SL8 gearbox, flex-system front part and back, stopping system on rear axle, front one-ways, back sold axle, ballraced anti-rollbars. A totally adjustable battle framework towards latest spec and technology. Lighter, easier, more powerful, brand new geometry, more tuning features.
Needs:
- system: 1/8th scale fuel on-road, IFMAR guidelines
- function: High-end competition
- weight: 2.420kg (relative to radio gear)
- Track-width right back: 260mm - 266mm
- Track-width front side: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent increase wishbone suspension
- Shock absorbers: RCM surprise absorbers
- vehicle's vehicle's gas tank: 125cc design
- back axle: Solid rear axle
- Front axle: Aluminium front axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax real movement clutch system
- recommendations: Complete colour directions
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and back roll centre
- Maybe perhaps not Included: engine, pipeline, human body, radio gear, tires, tires, battery pack
Features:
- Complete groundbreaking platform, 90percent brand new elements
- Lighter, though superstrong and durable
- Lower center of gravity
- New front part and backside geometry
- New interior drive ratio with brand-new pullies
- Brake regarding the back axle
- brand new front flex system
- quite simple to exert work on with many tiny details based on below
- Many elements are symmetric left/right (except front lower hands, right back 2-speed bearingblocks )
- numerous ballbearings operate in synthetic bushings ( except brake-cam, servosaver)
5mm aluminium framework in perfect symmetrical form additionally for flex and fat distribution. Aerospace quality 7075 T6 alumnium with engraved logo. Improved stiffness across the motor for better engine performance. Countersunk holes, chamfered sides for far more cornering, ground approval. Region in center part of the framework allowing mounting of optimum 3 brass sliding lots, which can be used as set-up device, to play with chassis security. It includes big influence on steering, hold and tyre usage and it's fairly simple and quick to improve. All screws through the base are with 2.5mm allen size.
The strong aerodynamic shaped composite bumper comes from the 966-TE . The upward edges makes it more stabile, so these wont touch the utmost effective under effect or with a top conditions.
The durable composite front side bodyposts are excentric, permitting going your body to front part or back a few mm to optimize steering / downforce.
The latest steeringblock , which is set up kept or appropriate, offers something to enhance the axle spot more to front or straight back supplying a trailing or leading steering, and power to replace the kingpin-inclination and offset.
The spring-steel steering-rods are fastened towards alu steeringplates, which mount towards the brand new steeringblocks. Optional carbon fibre disks is initiated privately associated with uprights to stiffen the construction and for aerodynamic reasons.
The steeringblock is suitable and left comparable, and features an aluminum meal for in touch the steering-rods, 2 alternatives for Ackermann.
The most recent longer durable front part reduced wishbones, are put up superlow in the vehicle, and show a semi covered leg for the internal suspension system system pin plus the pivot hyperlink the front part anti-roll club system, its additionally provides an extension the down-stop screw . The paid off fingers keep the reduced alu shockmount dinner, allows a further away and greater mounting point the front shocks. The strong new top arms in-may be properly used kept and appropriate. Leading paid down fingers connect to the alu front side bracket on low nylon holders. The kit includes 2 versions, low and superlow. This method also lets you alter a front driveshafts very quick and easy.
The longer top hands are installed relating to the anodized aluminum top brackets, which also support the suspensionpin inserts to allow camber-change changes with 3 feasible inserts . Within the alu top-brackets spacers might be regularly modification angle or height. Caster spacers are utilized as easy videos regarding top pivot pins. Same videos can also be applied to the low pins to improve wheelbase.
The topmounted composite bracket provides extra stiffnes towards front part area, it holds the 3mm thick carbon fiber front side shocktower and permit the down-stop screws.
The ballraced front anti-roll club changed to a wire kind, with fairly easy and fast available access regarding front side part, captured in alu front part braces. The conventional cable is 2.5mm and 2 other as alternatives. The pivotballs link system directs the capacity to the club in a smooth technique and a simple task to manage the tweak aided by the captured pivotball.
Right right in front part the alu front part axle with Japan-made one-way bearings features now a far greater pully setup, without play and super-true. Springsteel drivecups, strong, long and slim spring-steel driveshafts with CVD system, and ballraced springsteel wheelaxles with alu quick-change levers. The available front end design allows quickly and easy reduction of this leading axle or elements.
The newly designed springloaded servo-saver allows effortless and fast Ackermann settings. The servo-saver features a top mounted insert which are generally used in 3 jobs. Another 2 Ackermann functions regarding steeringblocks.
The latest steeringblocks and back uprights relate with the hands with springsteel 8.5mm pivotballs , which run extremely smooth and well protected in nylon cups, and are simple to adjust with an allen product.
Lowered split-design 2.5mm carbon fibre radioplate frontplate to reduce the greatest market of gravity and permit the latest optional flex-control system. The frontplate produces an incredibly rigid front part part product that also covers the servosaver to boost steering precision. The radioplate holds the fueltank, the receiver battery power and integral electronics bracket/box.
Leading end construction includes an optional system permitting from zero flex for many flex, around necessary for optimal usage. A smart system made up of a bearing and bushing controls the flex. This set is optional. Allowing the flex the radioplate is split in 2 sections. One of the secrets meal permits the torsion, considering that the front part meal keep the front end rigid, thin flex does occur just where most effective. Standard the flex-space is filled up with an oval nylon spacer. The flex parts contain 2 bearings and 2 inserts. By loosening the screw of alu holder within the front of primary radioplate , the flexsystem could possibly be triggered ( or fasten to de-activate ).
Compact composite brace and package in one, which holds and protects the receiver and mounts both servos, which both lay on their sides, just feasible, simply a little approval to permit for framework flex. The limit from the receiverbox provides a unique yet easy and simple safe owner the cable connectors associated with receiver, which works as an easy switch and it is very available.
The optional carbon transponder brace mounts towards the built-in electronics brace. When working with just a little receiver, the container has area to keep the transponder too, but should be tested for function prior to the competition. Inside our test drive it worked.
Repaid 125ccm fueltank in a whole new long and slim design, with a premounted bronze filter. The slim tank makes yes a much better fuel-supply towards motor, considering that the gasoline can go less backwards and forwards. The labyrinth inside the fueltank might keep consitently the gasoline more stabile and avoids foaming. The tank offers elevated parts in front part, which could make yes the gas stays near the filter whenever the tank is amlost empty. This produces like a warning sign a matter of seconds in front of the tank goes totally empty, that will help you look for a safer spot to park. The fueltank has a great springloaded limitation and silicone rubber shaped seal, and it has a link the force line. The inner base of th tank enables mounting inserts to scale back amount if needed.
The composite nylon radioplate bracket, holds a corner some the radioplate as the strong chromed angled roll-bar, additionally mounts the adjustable ballraced belt-tensioner. An aluminum one is optional.
All of the topmounted screws might found in allen 2.0mm size, excluding the very best suspension brackets in 2.5mm.
The batteryholder involving the tank and side belt , was created to fit the greater common Lipo packages. Additionally there was clearly enough space to allow for a regular batterypack. The master includes a straightforward spacing system permitting this.
The light, hollow 8mm hardcoated aluminium middle shaft is kept rigidly in location somewhat, low put and light alu owner, which also holds the spring-type exhaust-wire.
The past drive ratio the automobile is 2.286
28T front side pulley
18T mid-inner pulley
25T mid-outer pulley
19T external lay-shaft pulley
21T interior layshaft pulley
48T straight back axle pulley.
Most of the superround and real pullies have actually actually in reality holes inside part flanges to allow dust and dirt to go out easier. The 977 has a total new group of pullies, with extra teeth, therefore larger diameter making the belts operate smoother, with less friction.
The belts are low friction type as standard, back one as 8mm, component in 6mm and front 6mm too. The adjustable ballraced belt-tensioner ( carbon, alu) keeps the sidebelt operating smooth.
The reduced seated anodized aluminum engine mounts keep the engine well placed and aligned and move heat towards the framework in simplest way.
The newest tail construction with the alu brackets holds the braking system and back axle. Its available design allows eas of upkeep and cleansing, and needs extremely little screws to dis-assemble. Changing a belt whenever needed, is straightforward and very fast too. The excenter on backside shaft permits gear tensioning. The entire tail are eliminated while you product from chassis, with few screws.
The trunk axle sits low in the car than before, to complete more technical hold.
The stopping system relocated towards straight back axle, near the solid axle pully. This reduces the inertia aftereffect of the brakedisc lots since the rear axle spins a tremendous amount slower versus twospeed shaft. Along with the brake-stress within the straight back gear 's almost gone. Its a really compact system and well protected against dirt, but nevertheless available sufficient to permit for sufficient coolng. The swimming ventilated brake-disk rotates on a sizable part axle and springloaded cam-operated brake pads provides most of the stopping energy you'll need. The race braking system pad material is baked on strong metal dishes and enables actually exact stopping with an abundance of brake-feel / feedback. Instead of a cable we preferred the well-proven wire-linkage of all of the Serpent automobiles.
The ballraced braking system activator is bolted in a light alu owner towards the straight back bracket.
The ballraced backside anti-roll bar mount in metal adaptors, which operate in nylon spacers inside alu holders as important the key back brackets, with 2.5mm as standard cable and 2 other as alternatives. The anti-roll club links towards right back paid off hands with adjustable trackrod guidance.
The solid straight back axle with brand new lightweight 48T pulley in Serpent springsteel, 9mm wide with 4 slots for the pin.
The aluminium rear brackets besides the 2-speed layshaft holders have in fact tiny ears which enable mounting from optional alu or plastic spacer, to control flex. Either complete flex, no spacer, or some flex with synthetic spacer, or zero flex using the aluminium spacer.
The suspension system system system bracket and straight back meal support the pins firmly and have now composite roll-center inserts allowing for fast and precise modifications.
Into the straight back strong springsteel driveshafts , springsteel wheel-axles with alu quick-change levers and a springsteel back axle. Actually durable and enduring drivetrain
This completely new longer durable backside repaid wishbones can be used held and appropriate. The reduced right back supply holds the paid down set up link the backside anti-roll club and holds the alu mounting bowl of a corner shocks, allowing a scenario that is acutely far towards the rear and to the most notable for some easily of good use performance/ geometry. The lowr hands also keep consitently the available down-stop screws. Nylon videos may be used regarding paid down backside pins to improve wheelbase.
The durable composite uprights retain the ballraced springtime metal wheelaxles, with aluminium quick-change levers. The 8.5mm piotballs are acclimatized to adjust camber without headaches because of the smooth hex-shaped plugs . The fingers about the drifting bodymount mount toward the top of uprights. Inside the up-right spacers is added within the pivotball to improve rollcenter and camberchange.
Optional carbon fibre disks could be attached to the medial part with this specific uprights to stiffen the construction as well as for aerodynamic reasons.
The adjustable back top camber links mount toward straight back carbon camberplate with 2 jobs .
A big component drifting bodymount is connected to the up-rights with 2 hands and held constantly in place by a carbon-fibre-steel guider. Both hands have 2 positions available, based on body utilized. In conclusion with this mount enable mounting body-supports , with complete threading to allow exact positioning. The unit leads the available downforce direct onto towards uprights towards the tyres.
The compact, light 2-speed gearbox comes through the 966, featuring its verified durable and effective design, superb gears and enduring one-way. The 8mm springsteel 2-speed shaft is lightened , however in safe side to quit flex or breakage .
The newest Serpent genuine Motion Centax clutch is ready. Serpent as inventor the initial centax clutch, is rolling out of the clutch over the years and also the current variation excels in power throughput , reliability and eas of environment. The traditional verison comes with aluminium clutch bell and difficult anodized clutch-gears.
The kit features high speed ballbearings, mostly sealed people with aeroshell lubrication or oil. All bearings in to the vehicle ( apart from the servosaver and brakecam) are seated in nylon bushings to scale back vibrations and play.
The shockabsorbers could be the latest Serpent RCM devices with membrames. The threaded domiciles with setting-nuts ( or-ring inside) makes ride height improvements effortless and precise. Leading and right back shock are identical. The RCM shocks are getting to be smooth, and easy to construct and fill. The shocksprings are plumped for, matched, flatgrinded, colorcoded products, equal size front component and rear.
