Serpent SER903020 Serpent Viper 990 4wd 1/8 GP  [SER903020]

Serpent SER903020 Serpent Viper 990 4wd 1/8 GP
Price:
£527.03
Brand:
Serpent
Model:
SER903020
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category
Write a review
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
alt="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP" title="Serpent SER903020 Serpent Viper 990 4wd 1/8 GP"
  • The ultra-narrow framework is milled right down to allow paid down radio meal including enhanced flex. keeps the improved flex faculties. The key opening inside the tank is narrower, as a result of the narrower chassis.
  • The primary fat connection is set up from underneath and allows a sudden modification of this fat.
    the extra fat it self is fixed using a nylock nut. Bulletproof!

  • the leading fat connection became in addition mounted through the base allowing comfortable access on weight.
  • Also the leading fat is actually adjustable through bottom.
  • There are 2 extra locations to put a little fat, just behind the servo-saver.
  • And at motor.
  • The motor is lowered 1mm for improved flex also to lessen the CG
  • The straight back from framework has a slot. This will be explained a short while later here. This has pertaining to adjustable flex. Besides holds 2 metal countersunk screws that act as a counterpart of down-stop screws. It can benefit to keep the down-stop more accurate and consistent
  • Talking about flex: we tested a tremendous amount and one the improvements descends from reducing radio stations plate by 2.5mm. We also changed the form of it.
  • The front side of the automobile may be modified to more flex by removing leading stiffener bracket
  • The right back with this automobile may also be adjustable regarding the flex. To regular buttocks features the confirmed, one-piece rearplate
  • As a choice it is usually feasible to work well with a softer buttocks making use of a optional 2-piece rearplate
  • The radio-box is wholly brand-new. The “backbone” from this is a carbon dish and an aluminium framework.
    The aluminium servo mounts are eccentric and certainly will be installed in 2 techniques to adjust them towards model of servos.
    The receiver package is more roomy when compared with one present our 988, nonetheless it's extremely compact. It gives enough space also for older kind receivers and the transponder

  • This new field is installed towards radio meal in a flexible solution to manage to not influence the flex of vehicle.
    The expanding supply of frame keeps the atmosphere field inside desired spot without impacting flex.

  • The end is quite new.

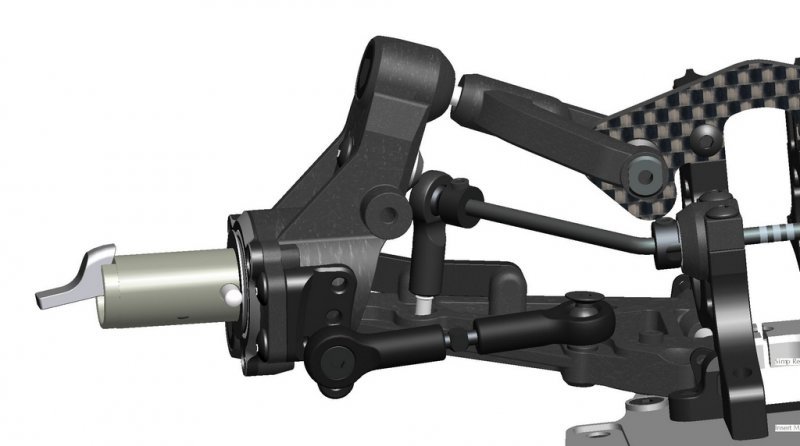

  • It features a brand new design to allow an re-active toe-change and steer clear of any binding anyhow!
  • By changing the placement with this specific hyperlink the total amount of toe-gain under compression could be modified. The positioning shown may be the “neutral” destination.
  • Since the top of website link is changed by a suspension supply, we furthermore changed the top of pivot in the upright. It truly is now quite simple to change the most effective camber.
  • The height using this pivot ball is adjustable by changing the aluminium insert. There are 3 positions

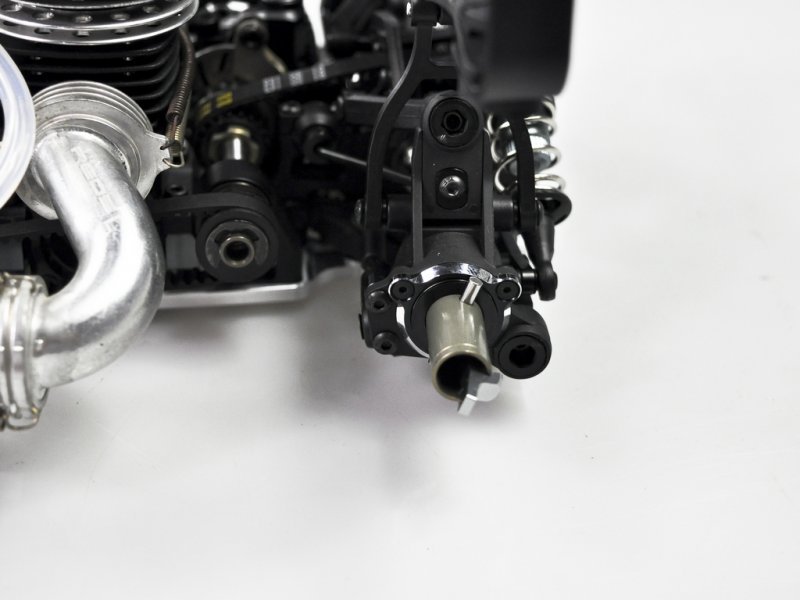

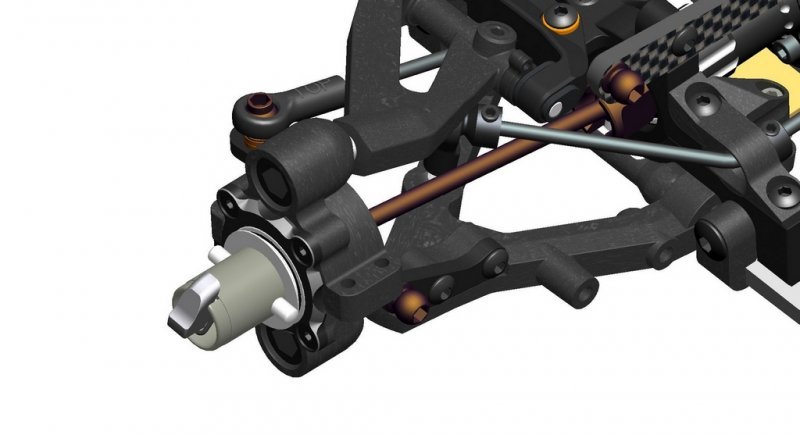

  • The upright holds an aluminium insert where the ball bearings of this wheel axle stay. In that way we're able to attain a perfect roundness additionally under load to ultimately achieve the minimum friction linked to the transmission feasible.

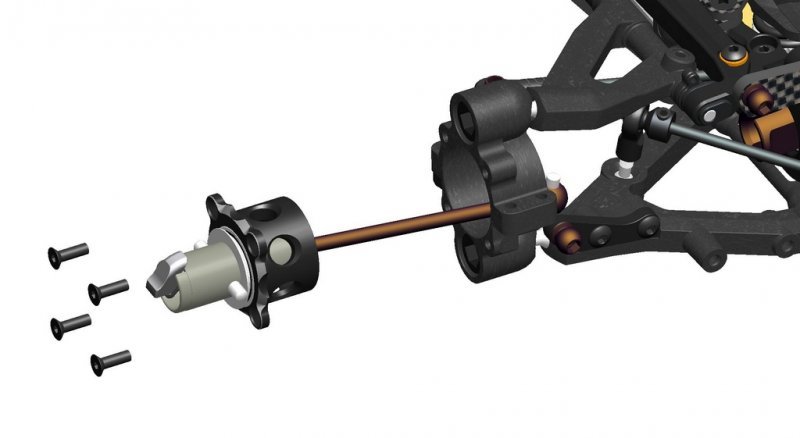

  • In in this way additionally it is fairly simple to get rid of the wheel axle/driveshaft for maintenance
  • The front part steering-block features the very same construction.
  • The aluminium insert provides the same advantages like in straight back with enhanced drivetrain effectiveness and enhanced simple maintenance
  • But because this insert is eccentric, since could be possible to alter the roll-centre and las utilizing a trailing or leading set-up.
    Clearly the steering-blocks stay left/right symmetrical and can be utilized with option1 additionally option2 levers.

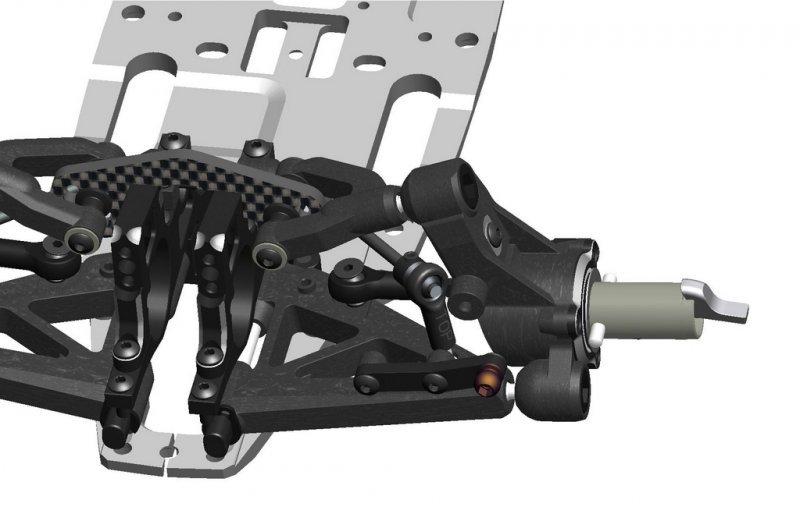

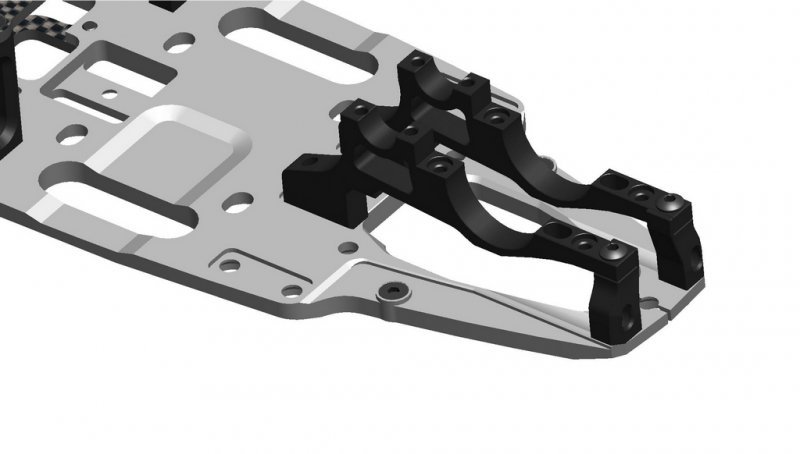

  • The front part top suspension system bracket now has an improved design that provides a much better positioning to stop camber or caster issues using bushings.

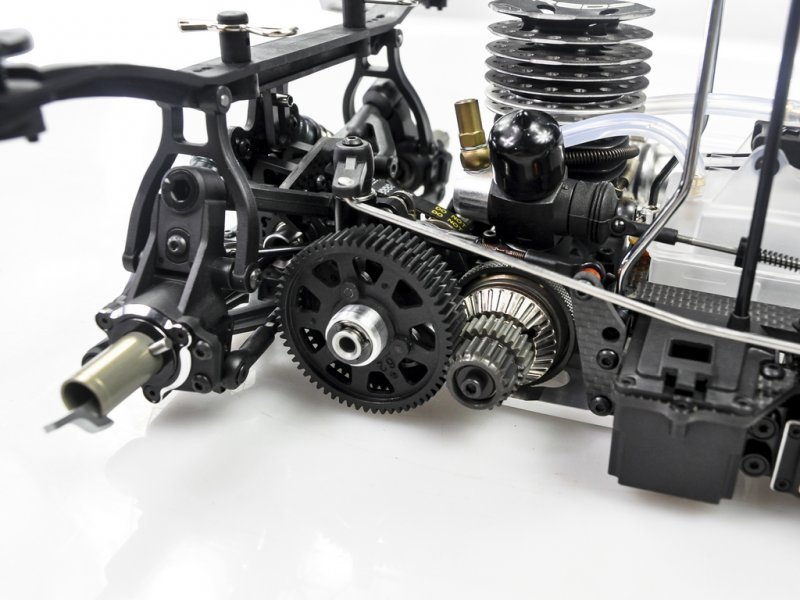

  • The unique lighter 2-speed shaft is 10g (!) lighter and features a super-true mounting of 18t pulley adapter.
  • 7075 T6 Aluminium 5mm framework dish
    The 5mm aluminium framework has perfect symmetrical kind additionally for flex and fat blood circulation. The ultra-narrow chassis is extremely light, though it 's still nevertheless strong in critical places.

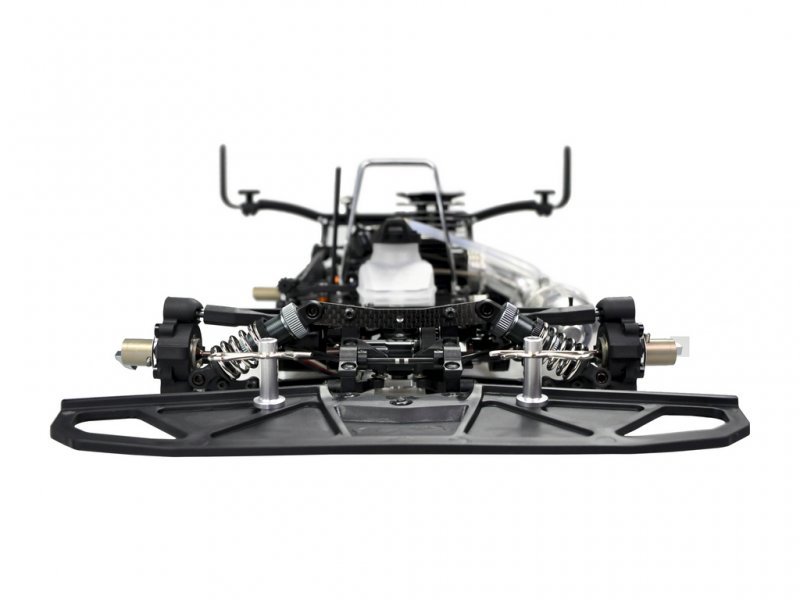

  • The cable sort front side anti-roll club is ball raced. It's an easy task to alter and adjust due to the available front side side end design. The conventional cable is 2.5mm and 2 optional thicknesses can be acquired. The pivot ball url system directs the suspension movement on club and allows easy tweak modification.
    The steering obstructs are for this hands with springtime metal 8.5mm pivot balls, which operate really smooth and well protected in nylon cups, and generally speaking are simple to adjust with a 2.5 hex device.

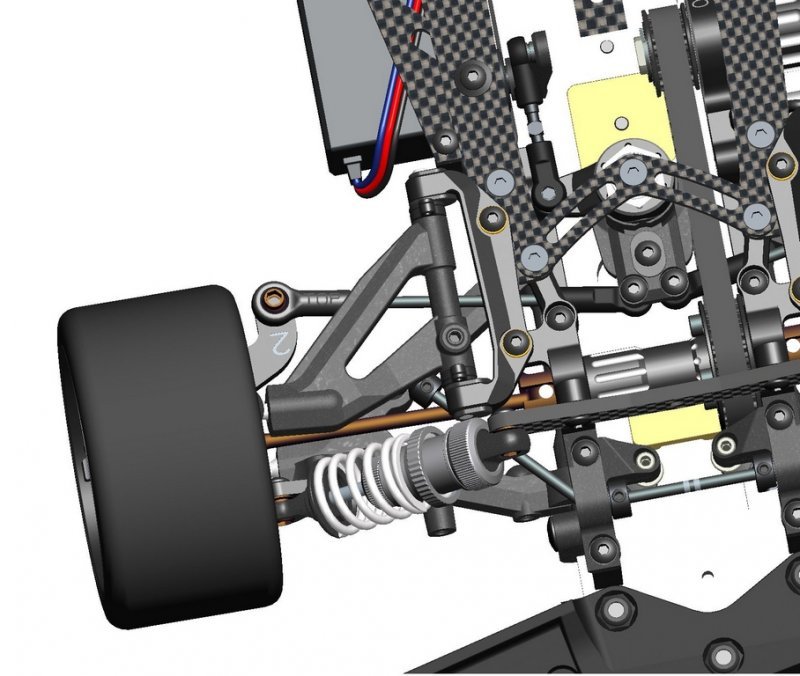

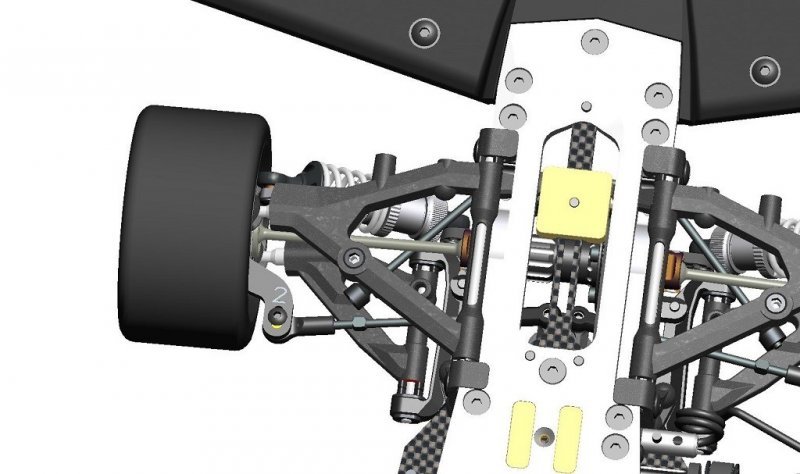

  • The long durable front part reduced wishbones may be the open-style arms much like the 977. An aluminium shock mount dish is screwed about the reduced wishbone. This enables the shock attachment explain be placed further outwards increasing shock motion. Leading paid off hands are set up towards the best brackets with nylon holders. The kit includes 2 variations: in and out. This method furthermore permits easy and quick front drive shaft upkeep.
    Absolutely the 988 shut hands are usable as well

  • The staying and right interchangeable upper arms are installed with 3 place nylon suspension system pin inserts. The 3 destination inserts enable camber-change corrections and are usually in addition held arranged by the anodized aluminium top brackets. Underneath the top brackets, spacers may be used to alter their angle or height. Caster is modified with clips towards the top pivot pins. Equivalent videos may applied to the paid down pivot pins to boost wheelbase.
  • The black anodized aluminium front side axle has Japan made one-way bearings. Spring metal drive cups attach to the long and slim spring-steel drive shafts with CVD system. The ball raced spring steel wheel axles have actually really aluminium quick-change levers. The available front side part end design permits fast and easy removal of the key axle and driveline parts.
  • The main mounted seervosaver allows simple and quick Ackermann modification. The servosaver features a high installed insert which is present in 3 functions. Another 2 Ackermann functions can be obtained about the steering obstructs.

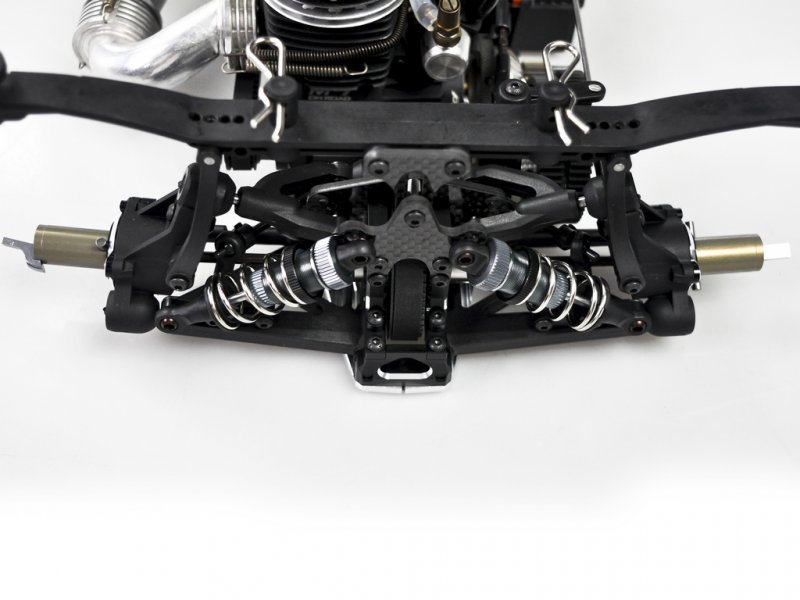

  • The end construction with aluminium brackets is a very available design, that enables for effortless upkeep and cleansing. Dis-assembly demands removing just some screws. Changing a belt if required, is a facile task. The eccentric bearing holders on back shaft allow modification of belt stress. Your whole buttocks is eradicated together device through framework by eradication of just a couple screws.
  • The cable sort backside anti-roll club is ball raced. It is installed to the straight back bearing obstructs and it's also quite simple to change and adjust. The conventional cable is 2.5mm and 2 optional thicknesses could be had. The pivot ball hyperlink system directs the suspension system movement towards club and allows simple tweak adjustment.
  • The slim solid back axle in Serpent spring metal has a lightweight 9mm wide 48T pulley. Spring steel, CVD kind, drive shafts link the trunk shaft to spring steel wheel-axles with aluminium quick-change levers. A really durable and resilient drivetrain.

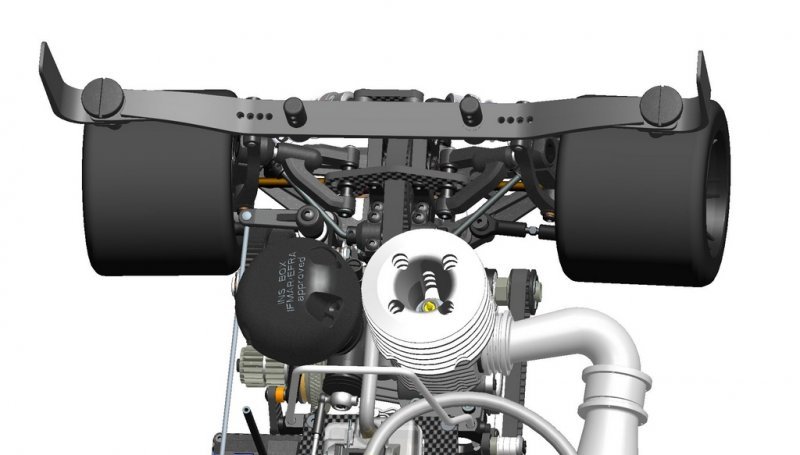

  • The right back floating body mount and this can be attached to the up-rights with 2 hands is concentrated by a carbon-fibre and metal guider. The mount has 4 functions for each part available, centered on human anatomy shell used and traction available. The threaded holes in regards to the end of the body mount give you the option to add further body-supports.
  • Optionals
    A substantial assortment of optional components is had to even more improve performance, price, fat and seems.
    www.serpent.com/903020

    Communications
    - website
    - Promo web site
    - Facebook website
    - Viper 990 Twitter individual team
    - YouTube video’s
    - Online set-up sheets
    - assistance from suppliers, dealers and team motorists worldwide

    Merchandising
    a pleasant choice of tops, sweaters, coats, caps, bags, tools and decals.

    Design
    Serpent Viper 990 . Created by Michael Salven.
    With great the assistance of all team-drivers and 989/988 drivers!
