Savox SH-1290MG Super Speed Metal Gear Digital Servo  [SH-1290MG]

Savox SH-1290MG Super Speed Metal Gear Digital Servo
Price:
£50.73
Brand:
Savox
Model:
SH-1290MG
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - System - Servo - Standard Servos category
Write a review
alt="Savox SH-1290MG Super Speed Metal Gear Digital Servo" title="Savox SH-1290MG Super Speed Metal Gear Digital Servo"

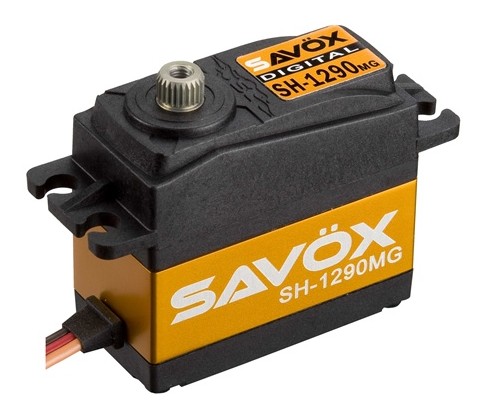

  • here is the Savox - SH-1290MG Super Speed Metal Gear Digital Servo

Features:

  • 4096 super high definition
  • Water-Resistant with 4 silicone seals
  • Coreless motor brings manufacturing performance to fresh amounts - smoother, faster and much more efficient operation.
  • The steel situation design not merely seems awesome but additionally permits cooler and smoother operating temps.
  • Our servos are totally green - from materials to production, these servos are green.
  • Ideal as a rudder servo on 500, 600, and 700 program helis.

Technical Specs:

  • Dimensions(mm): 40.3x20.2x37.2
  • Weight(g): 56.4
  • Speed(@4.8V sec/60): .06
  • Torque(@4.8V oz-in): 55.5
  • Speed(@6.0V sec/60): .05
  • Torque(@6.0V oz-in): 69.4
  • Gear: Steel
  • Bearing: 2BB
  • Case: Aluminum
  • Running current (at no load): 200 mA @ 4.8V
  • Running current (at no load): 250 mA @ 6.0V
  • Stall present (at locked): 2.4 A @ 4.8V
  • Stall current (at locked): 3.0 A @ 6.0V
  • Idle present (at stopped): 5 mA @ 4.8V
  • Idle present (at stopped): 5 mA @ 6.0V
  • Connector cable measure: 22 AWG
  • Connector wire size: 300+-5 mm
  • Horn gear spline: 25T
  • Control system: Pulse width modification
  • Amplifier type: Digital Controller
  • Running Travel: 100 degree (when1000->2000 usec)
  • Basic position: 1520 usec
  • Rotating means: Counterclockwise (when1500->2000 usec)
  • Pulse width range: 800->2200 usec
  • Optimum travel: Approx 154 degree (when800->2200 usec)
