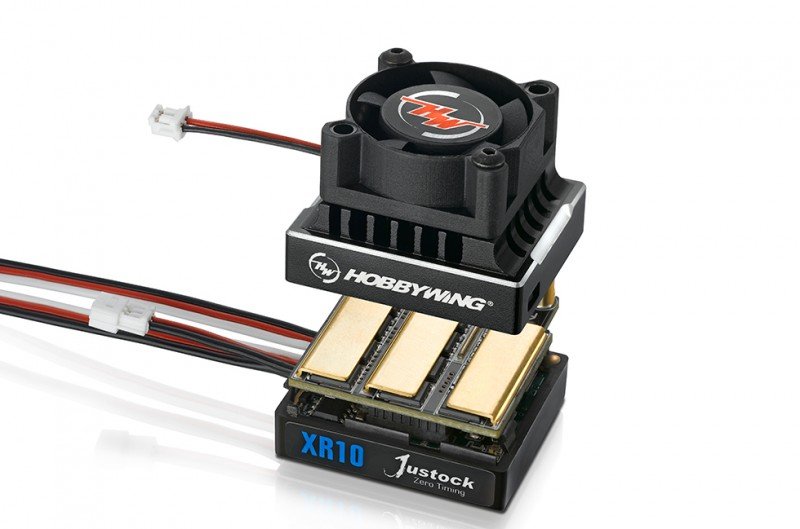

HOBBYWING XeRun XR10 Justock - 30112000  [HW-30112000]

Zero-timing Design

The XR10 JUSTOCK ESC is established particularly
for Zero-timing rushing course. Its timing system has
been completely set to ZERO level. Using the
very same branded motor and winding can easily make sure
every racer has comparable power system for
100percent reasonable and competitive competition.

Tall Reliability & Durability

Reliable equipment and high level pc software
technology allows the XR10 JUSTOCK never to just
offer high power production, but in addition overload
security with this ESC circuit.

High efficient Heat
Dissipating System

The modified heatsink, which escalates the
area, along with HOBBYWING
patented copper heat-conductive meals which
are attached to the MOSFET board permits the
interior temperature to be quickly utilized in the
heatsink for dissipation. Utilising the
high-performing removable cooling fan, a
highly dependable heat transfer system for
maximum cooling is accomplished.

Tiny Footprint

With its compact design, the XR10 JUSTOCK fits
numerous framework from 1/10th touring automobiles, 1/12th pan
vehicles and F1.

Regular Firmware Updates complimentary
of Charge

You can upgrade the XR10 JUSTOCK utilising the Hobbywing USB
LINK software applications, a multifunction LCD system package and a mobile computer.
Hobbywing updates its ESC firmware frequently giving you
upgraded features more regularly whenever available

Product Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

Specifications

• Cont./Peak Present : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : 6V@2A

Wires & Connectors

• Input cables : Blue-14AWG-200mm*1/Black-14AWG-200mm*1
• Output cables : Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25x25x10mm
• Voltage amount : 5-8.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Programming Wire : Programming/Throttle Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 33.0x28.0x31.5mm
• Weight : 46g

Applications

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/10^th,1/12^thTouring Car/Buggy tournaments (particularly inventory Class)
• KV Rating/T Count : 2S LiPo: 1/10^th Touring Cars≥8.5T, 1/10^th Buggies≥11.5T
  3S LiPo: 1/10^th Touring Cars≥13.5T, 1/10^th Buggies≥17.5T
  3650 Motors
