Revolutionary Double-switch Design
A integrated electronic switch along with another detachable switch effortlessly assists
the XR10 inventory Spec avoid some flaws of ordinary or one-switch ESCs. The interior switch
makes the wiring convenient, the external switch is actually handy whenever car shell is
create on as well as the integral switch is not any much longer touchable.
Special Design for INVENTORY Class Racing
Reliable equipment alongside great computer software (contains 5 typical ready-to-use
pages) creates an excellent power treatment for the STOCK span of 1/10 scale touring vehicle,
buggy battle.
Programming/Upgrading/
information learning Wirelessly
With Hobbywing's "WiFi Express" module and iPhone or an Android os phone (using the HOBBYWING
WiFi Link computer software create), the consumer can from another location system parameters, upgrade firmware and
always check appropriate information of ESC without making the control stand.

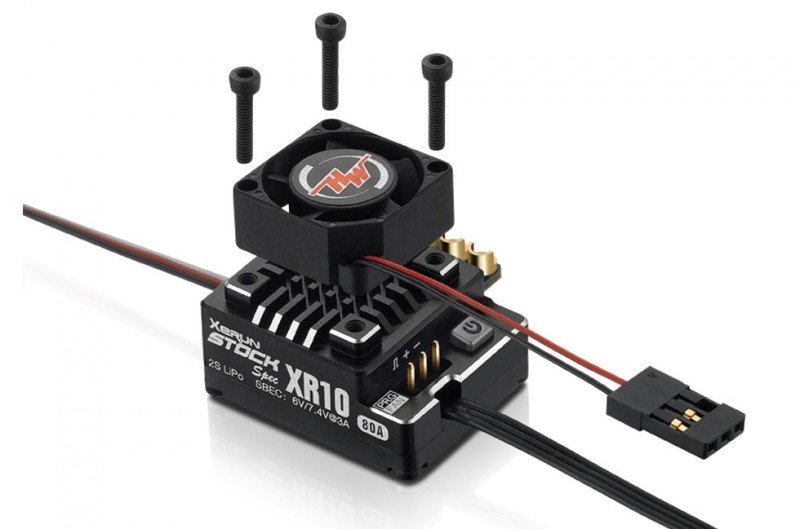

Minimal Size & Light Weight
This ESC is smaller and lighter versus standard version XR10
expert therefore's the mini form of XR10 expert 160A. The small size
(31.5x25.6x16.1mm) makes the installation convenient plus the
light-weight (simply 28g w/o cables) provides more excess body fat margin
whenever adjusting the amount the framework.
Super Internal BEC
The integral switch mode BEC with a maximum output
of 6A and voltage adjustable between 6V and 7.4V
enables the customer to work with different high voltage servos.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee accurate and accurate
throttle and braking system control for a lot of classes of tournaments (esp. the inventory program).
Data-logging Capability
This ESC features the data-logging function which may record
the utmost ESC & engine conditions, the minimal battery pack
voltage, many engine RPM and an such like. right away and
allows users to check those information via a LCD system industry or
WiFi module after every usage.
Item Specification
Type
- Scale : 1/10th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : No
Specifications
- Cont./Peak Present : 80A/380A
- Input Voltage : 2S Lipo/5-7 Cell NiMH
- BEC production : change Mode: 6V/7.4V,3A
Wires & Connectors
- Input Wires : Black-14AWG-200mm*2
- Output cables : Black-14AWG-200mm*3
- Input Connectors : No
- Output Connectors : No
Fan
- Size : 20x20x8mm
- Voltage quantity : 5-7.4V
- Powered by : BEC
ESC Programing via
- SET Button on ESC : perhaps not Supported
- LED Program Box : not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : specific system Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 31.5x25.6x16.1mm
- Weight : 54.5g (w/Wires)
Applications
- Motors : SL BL Motors
SD BL Motors - Vehicles : STOCK period of 1/10th Touring car & Buggy Racing
- KV Rating/T Count : 1/10th Touring Cars≥10.5T, 1/10thBuggy≥13.5T
