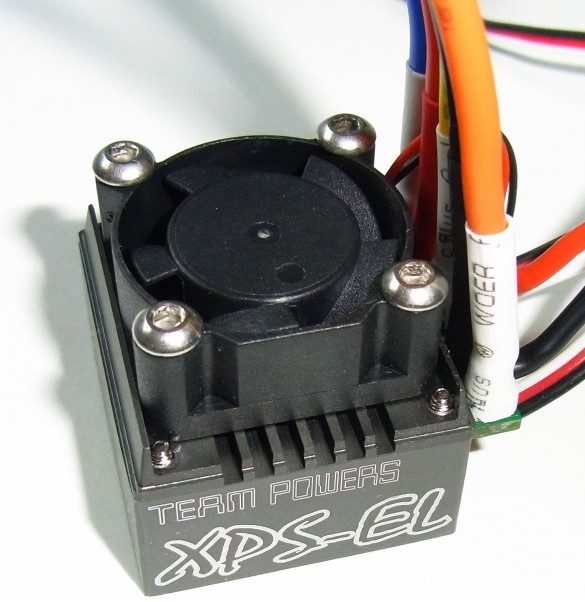

Team Powers XPS Pro Speed Control System V1.1 -140A (with setting card included)  [TP-XPS/Pro-v1_1]

Team Powers XPS Pro Speed Control System V1.1 -140A (with setting card included)
Price:
£101.28
Brand:
Team Powers
Model:
TP-XPS/Pro-v1_1
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category
Write a review
Team Powers XPS Professional Speed Control(140A) + Establishing Card
Item NoTP-XPS/Pro-v1_1

Features:

  • Assist along with kinds of sensored/sensorless brushless motors in RC model 1/10th, 1/12th vehicle & Truck
  • Assist Running Mode: ahead with braking system, Forward/Reverse, Forward/Reverse with Brake
  • Manual/Factory running profile environment. For factory running profile, it provides 9 degree for modify competition and 4 amounts LCTS (linear control timing system) for battle tournaments
  • utilize pocket-size system card to plan the controller settings
  • many security functions: Low voltage cut-off safety, Over temperature safety, Throttle indicator loss safety
  • additional smaller size aluminum casing for air-con
  • additional battery power production adaptor linking towards motor cooling fan


Techincal Specifications:

Model:

XPS- Pro

XPS-Sport

XPS-EL

Constant present:

140A

70A

35A

Burst current (10sec):

720A

400A

160A

Battery Input:

3.7V LiPo

2 cells

2 cells

2 cells

1.2V NiMh/NiCd

4-6 cells

4-6 cells

4-6 cells

BEC Manufacturing:

Linear 6V/2A

Linear 6V/2A

Linear 6V/2A

bodyweight (not included wiring& fan)

~42g

~41g

~40g

Dimension(L x W x H) mm

(would be the fan construction towards ESC)

~32 x 30 x 28

~32 x 30 x 28

~32 x 30 x 28

Engine limitation with 2cell x 3.7V Lipo
Assume motor at 0 level timing

4Turn or higher

6.5 Turn or more

9.5 Turn or higher



Developing Card Program Things includes:

Energy Profile

Over Heat Protection

Running Profile

Initial Punch Degree

Minimal Voltage Protection

Advance Punch Degree

Max Reverse Force

PWM Regularity

Max Brake ForceSensor Timing(Phase1)

Drag Brake Force

Manual Eng Ver:
http://www.team-powers.com/manual/XPS_Sport_EL_UG_07132010_eng.pdf

Handbook Chinese Ver:
http://www.team-powers.com/manual/XPS_Sport_EL_UG_09192010_ch.pdf

Setting Card Chinese Ver:
http://www.team-powers.com/manual/XPS_Sport_EL-SettingCard_ch.pdf
