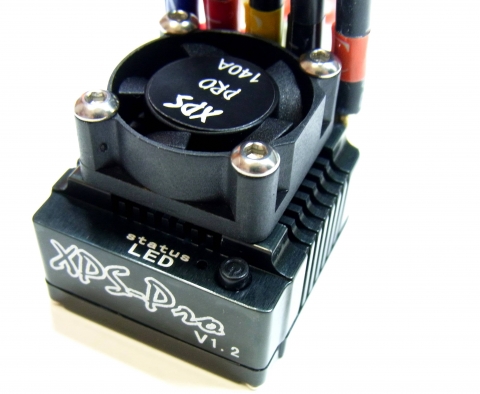

Team Powers XPS Pro Speed Control System V1.2 -140A (with setting card included)  [TP-XPS/Pro-v1_2]

Team Powers XPS Pro Speed Control(140A) + Developing Card

Item No: TP-XPS/Pro-v1_1

Features:

• Support with types of sensored/sensorless brushless engines in RC model 1/10th, 1/12th automobile & Truck
• Help Operating Mode: Ahead with braking system, Forward/Reverse, Forward/Reverse with Brake
• Manual/Factory running profile environment. For factory running profile, it offers 9 level for modify competition and 4 amounts LCTS (linear control timing system) for battle tournaments
• Utilize the pocket-size system card to program the controller settings
• Multiple security functions: minimal voltage cut-off safety, Over temperature safety, Throttle indicator loss security
• Extra smaller size aluminum casing for cooling
• Additional battery power manufacturing adaptor connecting toward engine air conditioning fan

Techincal specifications:

• Model: XPS- Professional /XPS-Sport/ XPS-EL
• Constant present: 140A /70A /35A
• Burst current (10sec): 720A /400A/ 160A
• Battery Input(3.7V LiPo): 2 cells /2 cells/ 2 cells
• Battery Input(1.2V NiMh/NiCd): 4-6 cells /4-6 cells/ 4-6 cells
• BEC production: Linear 6V/2A /Linear 6V/2A/ Linear 6V/2A
• Body fat (maybe not included wiring & fan): 42g /41g /40g
• Dimension(L x W x H) mm*(range from fan installation towards ESC): 32 x 30 x 28 /32 x 30 x 28/ 32 x 30 x 28
• engine limitation with 2cell x 3.7V Lipo*Assume motor at 0 degree timing : 4 Turn or maybe more /6.5 Change or over/ 9.5 Turn or higher


Setting Card Program Items includes:

• Energy Profile
• Over Heat Protection
• Running Profile
• Initial Punch Level
• Low Voltage Protection
• Advance Punch Degree
• Max Reverse Force
• PWM Frequency
• Max Brake Force Sensor Timing(Phase1)
• Drag Brake Force

Manual Eng Ver:
http://www.team-powers.com/manual/XPS_Sport_EL_UG_07132010_eng.pdf

Handbook Chinese Ver:
http://www.team-powers.com/manual/XPS_Sport_EL_UG_09192010_ch.pdf

Developing Card Chinese Ver:
http://www.team-powers.com/manual/XPS_Sport_EL-SettingCard_ch.pdf
