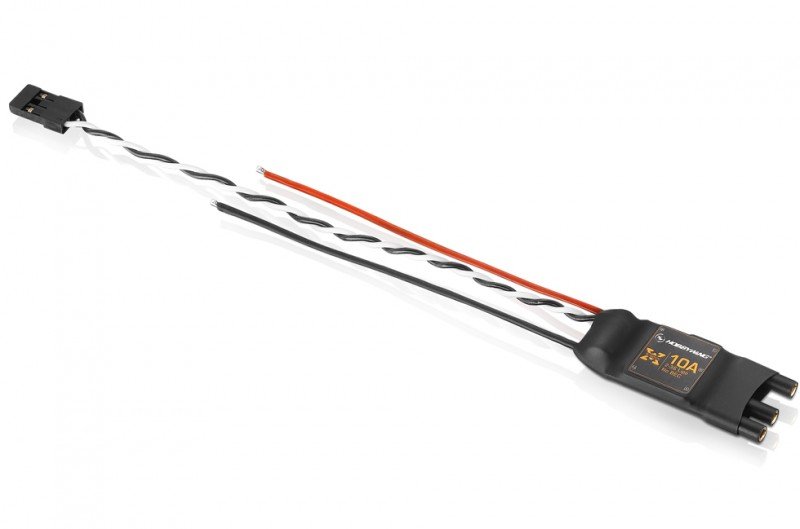

HOBBYWING XRotor 10A(Asian Version A) - 30901010  [HW-30901010]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, which is superior to various
open-source programs, dramatically improves throttle reaction.

A breeze to Use

All settings except the "Timing (adjustable between tall and Intermediate)"
are preset, making usage simple, extremely smart and adaptive.

Less alert Interference

The twisted-pair throttle sign cable effortlessly decreases disruption produced
in alert transmission and makes journey more stable and dependable.

Super Low Internal Resistance

Good quality MOSFETs employed by this XRotor 10A ESC make
interior opposition low but current endurance high.

Super high Throttle Signal

Compatible with different flight-control systems and helps a
throttle sign regularity due to the fact high as 621Hz.

Specifications

• Cont./Peak Current : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : Black-20AWG-100mm*3
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)
• Throttle amount Calibration : Supported
• Stick Programming : Supported
• DEO : not Supported
• OneShot Mode : not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 32.0x16.7x8.2mm
• Weight : 9g

Applications

• 250 Course Multirotors
