Definitely Integrated

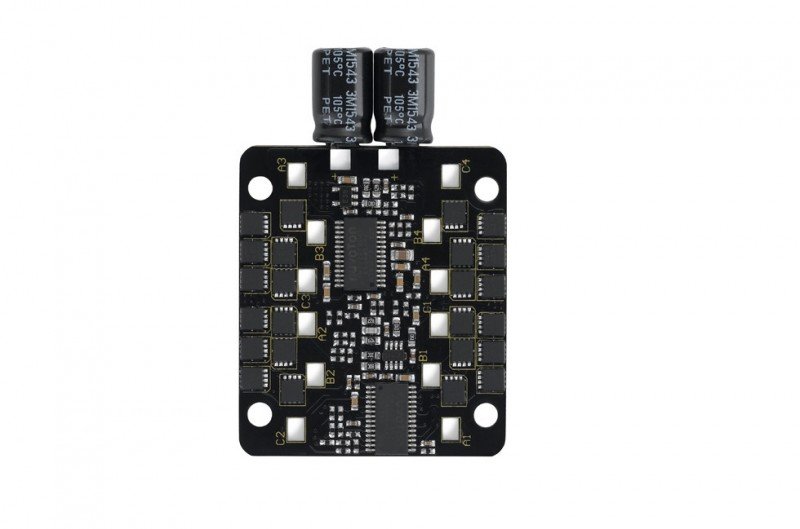

This XRotor 4IN1 Micro ESC not just includes 4 superior 20A ESCs,
1 integral BEC, but additionally manufacturing ports for powering peripherals like FC, camera,
and a slot for FC checking present and voltage instantly. The very integrated
framework makes the installation and wiring easy and simple clean.
Direction Reversal via TX
Rotation approach to each engine could possibly be set via transmitter.
This saves the issue of re-soldering/re-connecting after connected/soldered motors to
the ESC effortlessly and discovered engine runs backwards.
Quality Components
The utilizing upper end 32-bit supply processors
(because of the working regularity all the way to 48MHz),
key drive ICs, earned quality MOSFETs,
3-ounce copper and 6 quantities of PCBs guarantees less temperature,
greater effectiveness and rapider response.
Oneshot125, Oneshot42 & Multishot Modes eager!
This Xrotor 20A 4IN1 Micro ESC not just supports
regular throttle signals (utilizing the regularity completely to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with all the real-time regularity completely to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
higher rate throttle signals. All of this makes discussion
between FC and ESC more agile, throttle linearity smoother,
and throttle impact rapider.
DEO Technology/Active Freewheeling
The DEO (Driving Efficiency Optimization) technology
implemented within the ESC has numerous benefits:
● Active braking. Whenever reducing the throttle amount, the engine will
decelerate quickly. This feature enables pilots to easier
perform all maneuvers like razor-sharp turns, altitude changes,
and unforeseen braking.
● greater driving effectiveness, longer journey time.
● Lower ESC heat and a dependable procedure.
Engine Lock-up Protection
This XRotor 20A 4IN1 Micro ESC decreases its production to engine instantly
when it detects the motor shaft is locked up.
Splash-proof
The entire circuit board and all sorts of types of the components on
it had nano-coating treatment;
this might bring about the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications
- Cont./Peak active : 12A×4/18A×4
- LiPo Cells : 1-4S LiPo
- BEC manufacturing : 5V,1A
Wires & Connectors
- Output cables : solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : HW Special Program for FPVs
- ESC Programming : Supported
- Stick Programming : Transmitter
- DEO : Supported
- Throttle amount Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : perhaps not Supported
- Motor Rotation : Supported
Size & Weight
- Size : 38.1x37.9x5.3mm
- Weight : 8g
