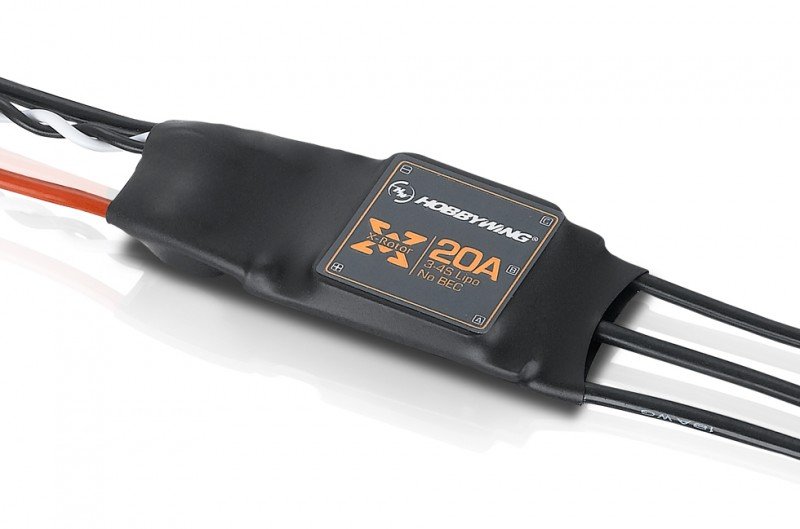

HOBBYWING XRotor 20A(Asian Version B) - 30901004  [HW-30901004]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, which can be much better than various open-source
programs, significantly improves throttle effect.

Quite simple to Use

All settings except the "Timing (adjustable between tall and Intermediate)"
are preset, making use simple, incredibly smart and adaptive.

Less Signal Interference

The twisted-pair throttle indication cable effectively decreases disturbance produced
in alert transmission and makes trip more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs utilized by this XRotor 20A ESC make
internal resistance low but present endurance high.

Super High Throttle Signal

Compatible with different flight-control systems and aids a
throttle signal frequency all the way to 621Hz.

Specifications

• Cont./Peak active : 20A/30A
• LiPo Cells : 3-4S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output cables : No
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle quantity Calibration : Supported
• Stick Programming : Supported
• DEO : maybe not Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 50.0x21.6x12.0mm
• Weight : 15g

Applications

• 330/450 Course Multirotors
