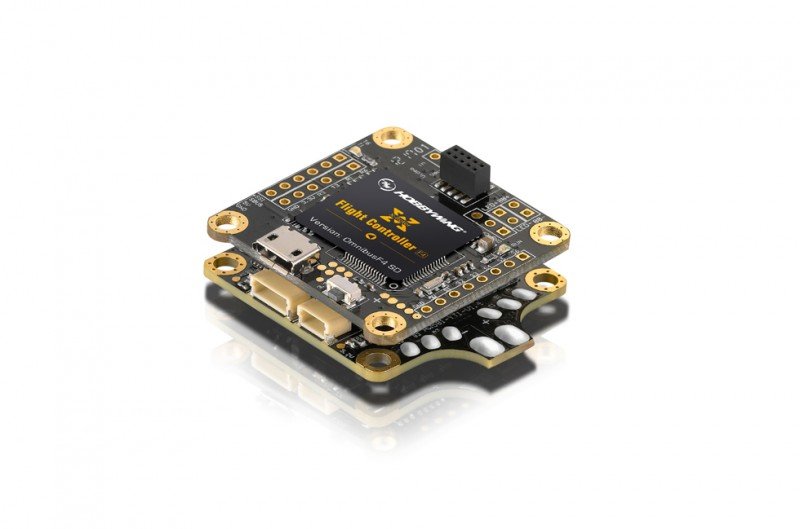

HOBBYWING XRotor Flight Controller F4 - 31001000  [HW-31001000]

HOBBYWING XRotor Flight Controller F4 - 31001000
Price:
£37.65
Brand:
Hobbywing
Model:
HW-31001000
Condition:
Brand New
Write a review
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"
alt="HOBBYWING XRotor Flight Controller F4 - 31001000" title="HOBBYWING XRotor Flight Controller F4 - 31001000"

Super-high running Frequency

The STM32F405 MCU which features the effective computing capability and super-high
running regularity permits the FC to operate the PID and gyro with higher regularity.


DShot 150/300/600/1200,
Oneshot125, Oneshot42,
Multishot Modes Supported

Besides the newest Dshot 150/300/600/1200 mode, the FC
also supports the conventional PWM mode, Oneshot125 mode,
Oneshot42 mode and Multishot mode.


TF-card Insertion Supported

A TF-card are placed into to your FC to record and save more journey information,
allowing users to modify their aircraft efficiently.


Onboard OSD Microchip

Onboard OSD microchip allows users to
efficiently adjust different (OSD) parameters via
the Betaflight/Cleanflight pc software.


BetaFlight/Cleanflight Firmware Ready

The FC which supports Betaflight/Cleanflight firmware & permits parameter adjustment via Betaflight /Cleanflight software is more strongly related FPV flying & rushing.


Compatible(using the Hobbywing 4IN1 ESC&VTX)

It’s fairly simple to wire and install whenever combining the FC with a Hobbywing 4-in-1 tower ESC &
a HOBBYWING VTX (Video Transmitter).





Item Specification


Basic Features

  • Compatible with (Multirotors) : Quadcopters, hexacopters
  • Firmware : OMNIBUSF4SD
  • FC Programming : Supported
  • Programming via : Betaflight/Cleanflight-configurator
  • Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
  • OSD : Built-in
  • Voltage Monitoring : Supported
  • Current Monitoring : Supported
  • External Buzzer : Supported
  • LED Control : Supported
  • TF-card : Supported (optimum: 32g)
  • USB Port : MicroUSB

Size & Weight

  • Size : 35*35mm
  • Weight : 6g
