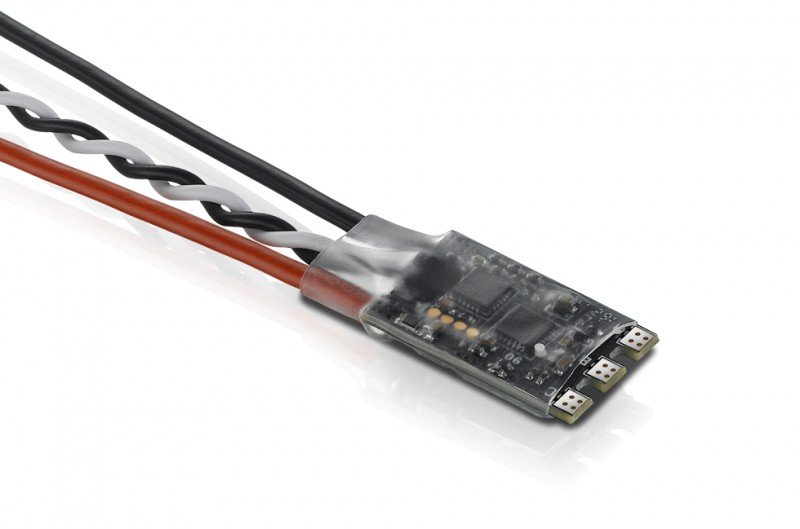

HOBBYWING XRotor micro 30A BLHeli - 30901071  [HW-30901071]

Super Small & Light

ESCs with incredibly small size and light-weight are
especially created for competition FPV drones.

Quality Components

The using F396 48MHz MCU, earned MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 degrees of PCBs along with other
quality elements guarantees less heat, greater effectiveness and rapider reaction.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the sign cable (on ESCs), and system 4 ESCs besides after
linking their journey controller towards the BLHeliSuite computer programs in the event that journey controller makes use of the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, trip a while heat
dissipation. The ESCs help OneShot125 higher rate throttle
sign and regular throttle indication (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle sign cable efficiently decreases disturbance stated in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 30A/40A
• LiPo Cells : 2-4S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : perhaps not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
