High Performance Hardware &
Original Third-generation BLHeli_32 Firmware
The usage of superior 32-bit supply microprocessor (which operates at 48MHz),
introduced quality MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 examples of PCBs, as well as third-generation BLHeli (BLHeli_32 firmware)
produces an ESC with a growth of functions & better performance specially for FPV drones.
Hardware Generated PWM & Damped Light Mode
The ESC firmware uses gear produced motor PWM for smooth throttle effect and peaceful
procedure. Damped light does regenerative breaking, causing quickly engine retardation, and yes it
inherently also does active freewheeling.
Many Programmable Items
The initial BLHeli_32 firmware allows users to obtain in contact four
ESCs toward FC flashed along with the Cleanflight/Betaflight
firmware via indication cables (inside the ESCs) setting fundamental
parameters linked to ESCs simultaneously, upgrade the firmware
or change high rate parameters on the internet besides.
Several Protections
Multiple security functions like engine
lock-up security, heat protection,
low RPM energy protection, low-voltage
security and current security efficiently
prolong the solution life about the ESC.

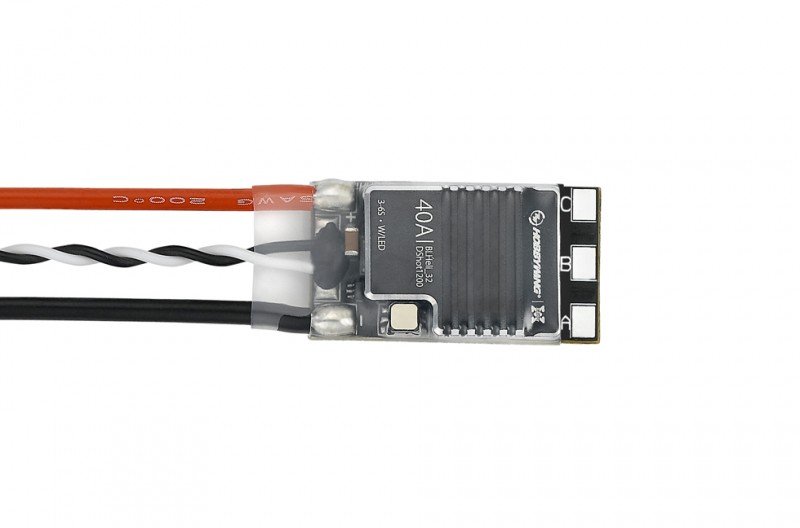

Light-emitting Diode Indicator (simply the XRotor 40A
BLHeli_32 has it) & Beacon Functionality
The light color associated with Light-emitting Diode indicator into the ESC is adjustable.
The Beacon functionality, that could drive the motor to beep in the event throttle sign has
been zero for many time, effortlessly helps finding lost crafts.
Specifications
- Cont./Peak active : 30A / 50A
- LiPo Cells : 2-5S Lipo
- BEC manufacturing : No
Wires & Connectors
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli_32
- ESC Programming : Supported
- Stick Programming : BLHeliSuite
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 23.8x14.5x5.8mm
- Weight : 6g
