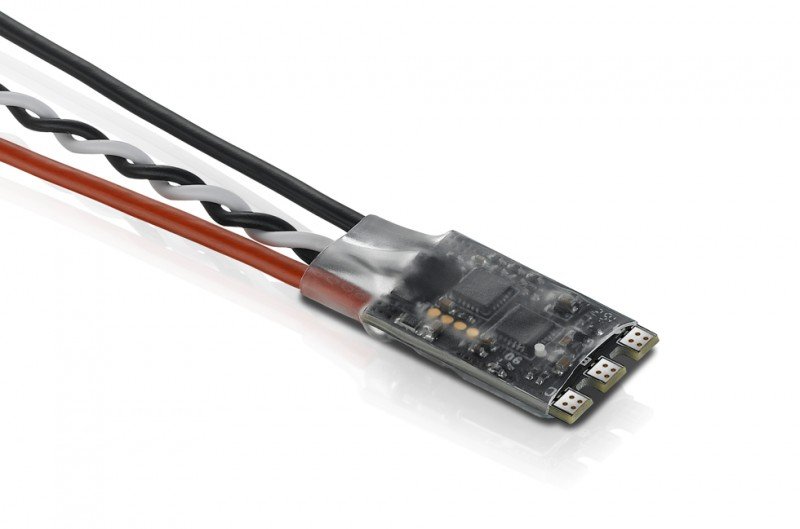

HOBBYWING XRotor micro 35A BLHeli - 30901070  [HW-30901070]

Super Small & Light

ESCs with exceedingly small size and lightweight are
especially designed for competition FPV drones.

Quality Components

The usage of F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs alongside
quality elements guarantees less temperature, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the indication cable (on ESCs), and system 4 ESCs at the same time after
linking their trip controller on BLHeliSuite software in case journey controller uses the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and enables
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, trip a while heat
dissipation. The ESCs help OneShot125 high rate throttle
sign and regular throttle indication (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle sign cable efficiently decreases disturbance manufactured in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 35A/50A
• LiPo Cells : 3-6S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle quantity Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 36.5x16.7x5.5mm
• Weight : 10g

Applications

• FPVs with 150-330mm Diagonal Wheelbase
