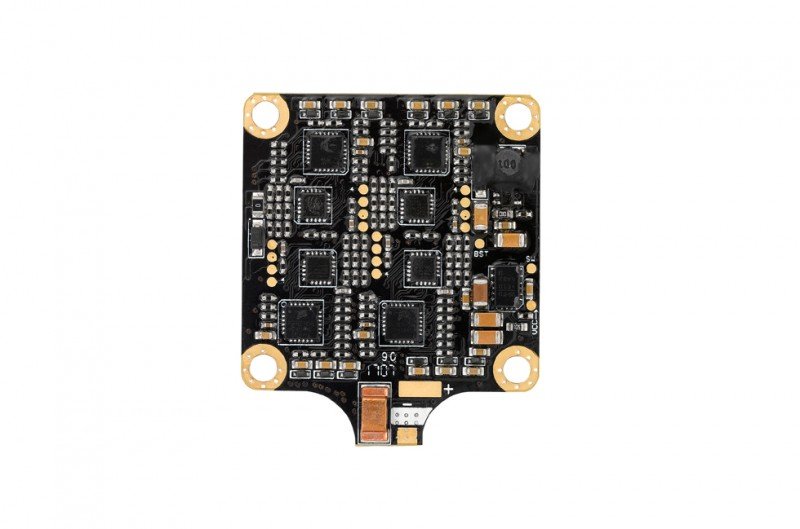

Extremely included & Compact
The 4-in-1 ESC not just includes 4 superior 40A ESCs, 1 integral BEC,
but in addition an Amp/Volt monitoring slot enabling FC take notice of the volt & amp
instantly (on condition your FC supports this function); it’s no more than a
FC for FPV(s) and simple for installation and wiring. Utilising the remarkably small
size, it's outstanding match for competition FPV(s).
Top-notch Components
The usage of EMF8BB21F16G MCUs using the operating regularity since high as
48MHz, introduced top quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 layers of PCBs guarantees less temperature,
higher effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
utilizes the original BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various techniques
(effortlessly put. via throttle signal cable with using other development
board or a FC flashed with the cleanfight/betaflight firmware).
DShot150/300/600 Ready
Besides the traditional PWM mode,
Oneshot125/Oneshot42/Multishot modes, the newest
DShot150/300/600 modes can also be supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and quick response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware uses equipment produced motor pwm for smooth
throttle response and quiet procedure. Damped light does regenerative
breaking, causing very fast engine retardation, therefore inherently additionally
does active freewheeling.
Specifications
- Cont./Peak active : 40Ax4/50Ax4
- Input Voltage : 2-5S Lipo
- BEC output : 5V & 1.5A
Wires & Connectors
- Input cables : Red-14AWG-130mm / Black-14AWG-130mm
- Output Wires : No wires but solder tabs
- Input Connectors : XT60 (w/ cables Soldered on)
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 42.6x36x4mm
- Weight : 10g
