Effective Hardware &
Original Third-generation BLHeli_32 Firmware
The usage of superior 32-bit supply microprocessor (which runs at 48MHz),
brought in excellent MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 levels of PCBs, in addition to the third-generation BLHeli (BLHeli_32 firmware)
creates an ESC with extra functions & better performance particularly for FPV drones.
Hardware Generated PWM & Damped Light Mode
The ESC firmware utilizes gear generated motor PWM for smooth throttle reaction and peaceful
procedure. Damped light does regenerative breaking, causing quickly motor retardation, therefore
inherently also does active freewheeling.
Multiple Programmable Items
The initial BLHeli_32 firmware allows users to be able to connect four
ESCs in direction of FC flashed with the Cleanflight/Betaflight
firmware via indicator cables (concerning the ESCs) establishing fundamental
parameters of ESCs at exactly the same time, upgrade the firmware
or adjust advanced level parameters online at exactly the same time.
Several Protections
Multiple safety functions like engine
lock-up security, temperature security,
low RPM power security, low-voltage
safety and present security effortlessly
prolong the solution life associated with ESC.

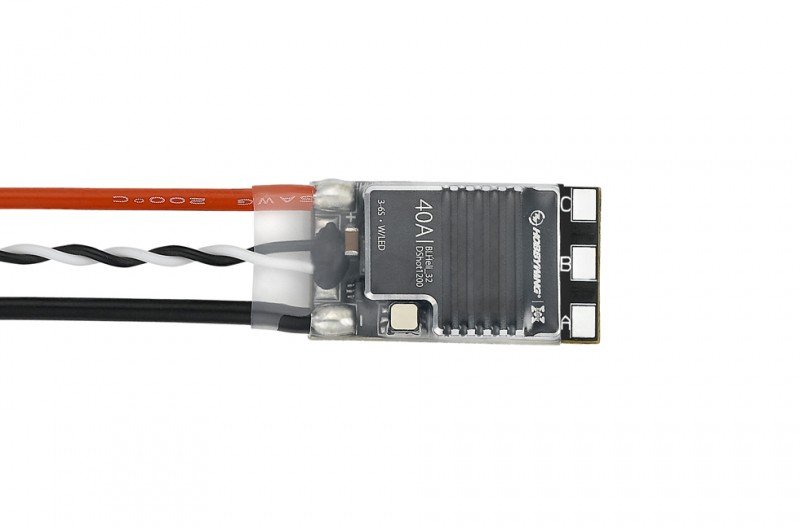

Light-emitting Diode Indicator (only the XRotor 40A
BLHeli_32 has it) & Beacon Functionality
The light color associated with LED indicator on ESC is adjustable.
The Beacon functionality, that may drive the engine to beep in the event that throttle indication has
been zero for certain time, effectively helps finding lost crafts.
Specifications
- Cont./Peak Current : 40A / 60A
- LiPo Cells : 3-6S Lipo
- BEC manufacturing : No
Wires & Connectors
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli_32
- ESC Programming : Supported
- Stick Programming : BLHeliSuite
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32.7x18.4x6.2mm
- Weight : 11.5g
