Dshot 150/300/600, Oneshot125,
Oneshot42, Multishot Modes Supported
Besides the newest Dshot 150/300/600 mode, the ESC also supports
regular PWM (1000µs -2000µs) mode, Oneshot125 (125-250µs) mode,
Oneshot42 (42-81µs) mode and Multishot (2-25µs) mode.

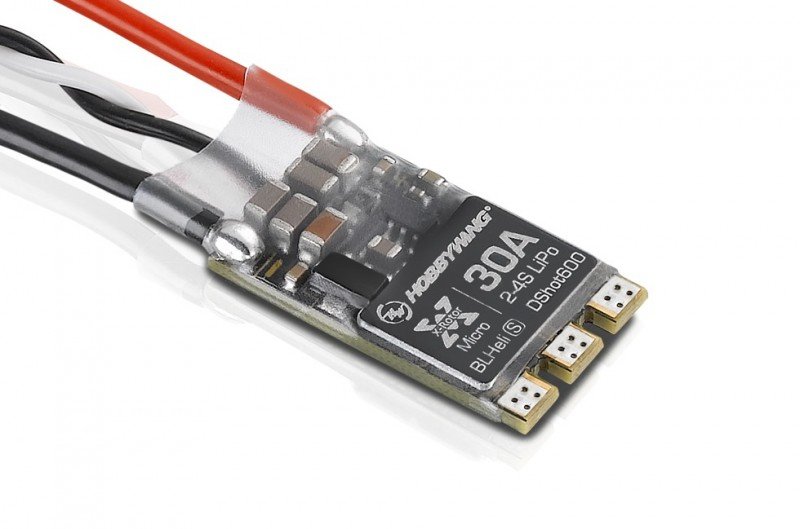

Super Small & Light
With the remarkably little size (23.8x14.5x5.8mm) and lightweight (6g),
XRotor Micro BLHeli-s 30A DShot600 is an ESC especially designed for competition FPV drone(s).
Quality Components
The using EMF8BB21F16G MCU (as a result of operating regularity of up to 48MHz),
usa Fairchild MOSFETs, introduced 3-in-1 drive IC and quality ceramic
capacitors, 3-ounce copper and 4 degrees of PCBs guarantees less temperature, greater
effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC supports initial BLHeli-S firmware. Users can flash or upgrade the firmware through
indicator cable (on ESC) and plan 4 ESCs also after linking their journey controller to the
BLHeliSuite pc software (just in case journey controller utilizes the CleanFlight or betaflight firmware).
Hardware Generated PWM & Damped Light Mode
The ESC firmware employs hardware released motor pwm for smooth throttle reaction and
peaceful procedure. Damped light does regenerative braking, causing very quickly motor retardation,
and yes it inherently also does active freewheeling.
Twisted-Pair Signal Cable Reduces Interference
The twisted-pair throttle signal cable effectively decreases disruption manufactured in alert
transmission and makes the journey a lot more stable and dependable.
Specifications
- Cont./Peak Current : 30A/40A
- Input Voltage : 2-4S LiPo
- BEC production : No
Wires & Connectors
- Input Wires : Red-18AWG-100mm*1 / Black-18AWG-100mm*1
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle Range Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 23.8x14.5x5.8mm
- Weight : 6g
