Effective Hardware for extremely fast working Speed
The STM32F405 MCU, which features effective computing ability & super working rate,
aided by the high-sensitivity ICM20602 6-axis movement sensor supports 32KHz PID controller &
gyro. The built-in OSD chip enables users to change or set OSD parameters through
Betaflight/Cleanflight/Butterflight/invaflight computer software or transmitter effectively. The inside TF-card
expansion slot permits users to put a SD card to record more trip information.
Revolutionary Shock-absorbing Structure
The Innovative linking method via a soft cable (*it increases results
whenever pairing because of the XRotor Micro 45A 4in1 BLHeli_32 DShot1200)
in conjunction with shock-absorbing design of mounting holes
effortlessly decreases the impact high-sensitivity FC elements
from outside surprise to generate every journey more stable and accurate.
On-board Filter Circuit

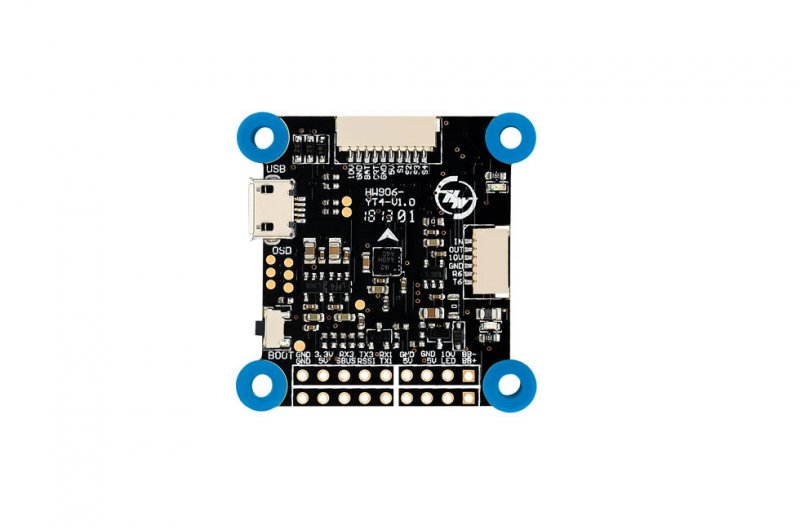

The XRotor Micro-F4-G2, which integrates with a filter circuit
module (*it simply functions whenever pairing with the 10V BEC regarding the
XRotor Micro 45A 4in1 BLHeli_32 DShot1200), provides purer
powering condition for VTX to make pictures more clear and stable.
Several Throttle Signal
Modes Supported
Besides the newest DShot 150/300/600/1200
high-speed electronic throttle indication modes plus the
Proshot1000 blended throttle indication mode, the
Oneshot125/Oneshot42/Multishot and regular PWM
throttle indication modes may also be supported.
Several FPV Firmware Supported
The XRotor Micro-F4-G2 not only supports numerous main-stream FPV firmware like BetaFlight, Cleanflight,
Butterflight and invaflight, and also permits users to modify or set parameters through matching
software. All of this makes the equipment more relevant to various FPV roads & race.
Compatible(because of the Hobbywing 4IN1 ESC&VTX)
It’s quite simple to wire and install whenever combining the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (film Transmitter).
Item Specification
Basic Features
- Compatible with (Multirotors) : Quadcopter
- Firmware : OMNIBUSF4SD
- FC Programming : Supported
- Programming via : Betaflight/Cleanflight-configurator or Others
- Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, DShot1200, Proshot1000 and etc. - suitable for (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
- OSD : Built-in
- Voltage Monitoring : Supported
- Current Monitoring : Supported
- External Buzzer : Supported
- LED Control : Supported
- BEC : No
- USB Port : MicroUSB
Size & Weight
- Size : 36*36mm
- Weight : 6g
