Severely integrated & Compact

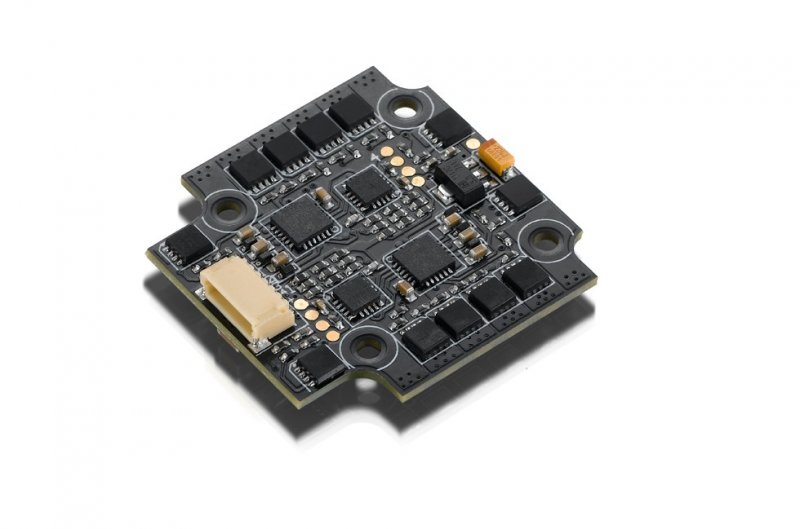

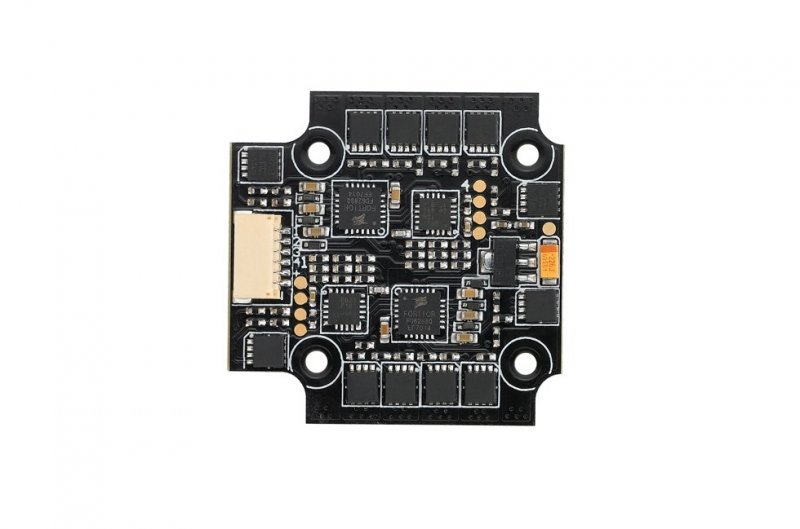

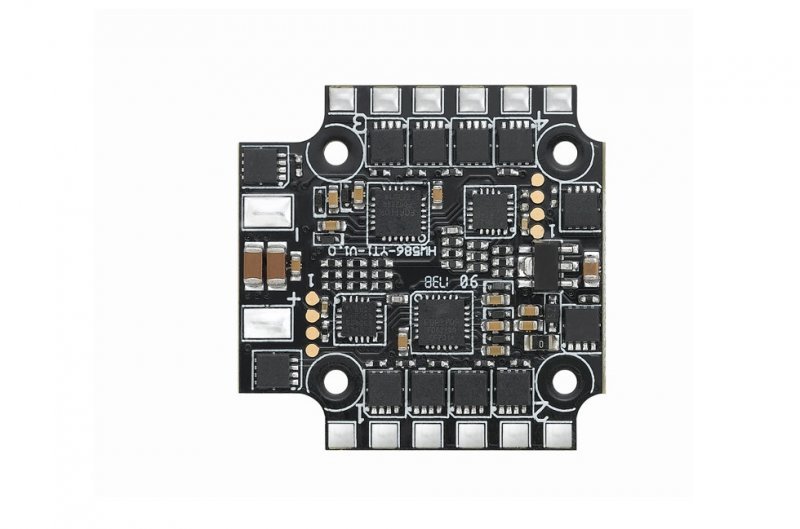

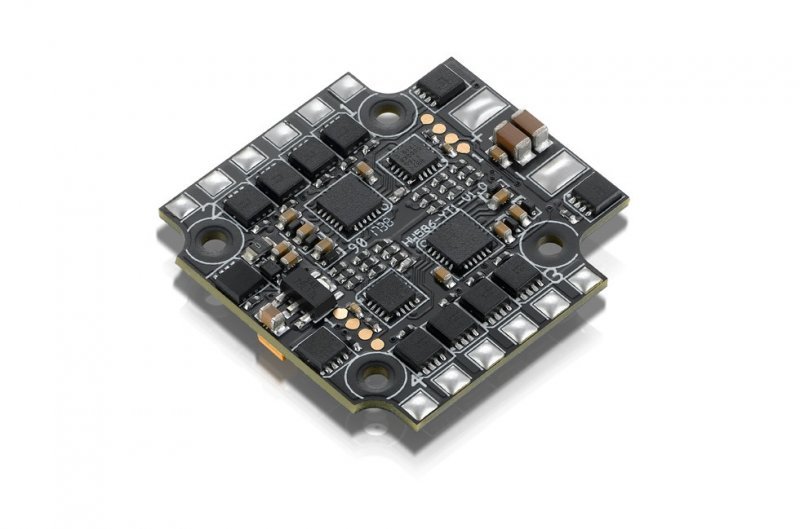

The XRotor Nano 20A 4in1 BLHeli-S DShot600 not merely includes 4
superior 20A ESCs, and a volt monitoring slot allows for FC to
monitor the voltage immediately (on condition your FC supports this function).
Due to the extremely small size, the installation and wiring might be quite simple
and simple whenever combining it because of the Hobbywing XRotor Nano Flight Controller.
It’s an ESC especially made for super mini-sized interior FPV(s).
Top-notch Components
The usage of EMF8BB21F16G MCUs because of the working regularity completely to
48MHz, introduced high-quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 quantities of PCBs guarantees less temperature,
greater effectiveness and rapider reaction.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
makes use of the initial BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various techniques
(in other words. via throttle signal cable with using other development board
or a FC flashed due to the Cleanfight / Betaflight firmware).
DShot150/300/600 Ready
Besides the normal PWM mode,
Oneshot125/Oneshot42/Multishot modes, the most recent
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware uses gear produced engine pwm for smooth
throttle response and peaceful procedure. Damped light does regenerative
breaking, causing quickly engine retardation, and it inherently furthermore
does active freewheeling.
Specifications
- Cont./Peak active : 20Ax4/ 30Ax4
- Input Voltage : 2-4S Lipo
- BEC output : No
Wires & Connectors
- Input cables : Red-16AWG-85mm/ Black-16AWG-85mm
- Output cables : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32x31.9x5.8mm
- Weight : 6g
