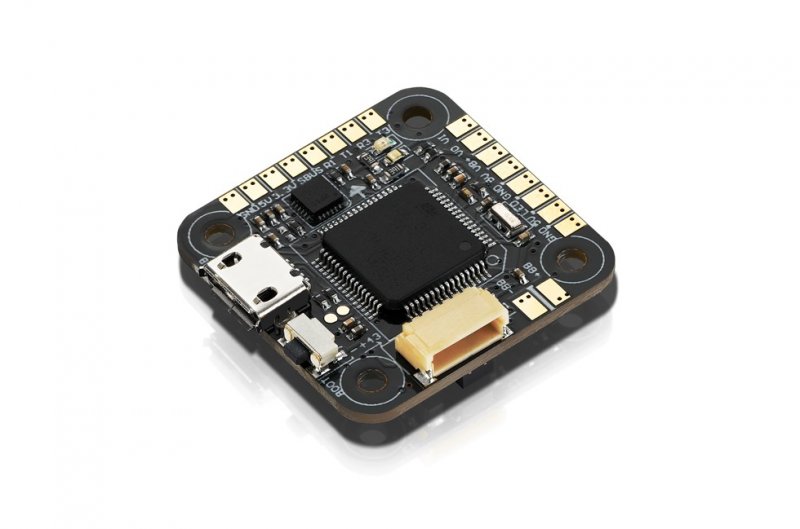

HOBBYWING XRotor Nano F4 Flight Controller - 31001001  [HW-31001001]

Small(er) Size

With the severely tiny size, maybe it's set up on
more mini-sized airframe (in other words. 130mm or below) plus
features a lot of the functions that regular FC for FPV(s) has.

DShot 150/300/600/1200
Modes Supported

Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes,
the modern DShot150/300/600 modes are
also supported.

Very fast working Speed

The STM32F405 MCU which features the effective
computing capability and incredibly quick working price can
offer the PID controller with greater cyclic regularity &
the gyro with higher refresh rate.

Built-in BEC & OSD

The integrated BEC (5V/1.5A) provides
power for various electronic devices;
the internal OSD allows users to modify
or set all OSD parameters through the
Betaflight/Cleanflight computer programs effectively.

Betaflight/Cleanflight Firmware Supported

The trip controller supports the Betaflight/Cleanflight firmware and allows users
to modify or set different parameters via the Betaflight/Cleanflight software effectively.
it is appropriate toward FPV flight & rushing.

Suitable for Hobbywing XRotor Nano 4in1 ESC

When combining the Nano Flight Controller F4 with the Hobbywing XRotor Nano 4in1 ESC,
the wiring & installation can be hugely quick and simple.

Item Specification

Basic Features

• Compatible with (Multirotors) : hexacopters
• Multi-rotor Type : Quadcopters
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
  Dshot600, Dshot1200, Proshot1000
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• BEC : 5V @ 1.5A
• USB Port : MicroUSB

Size & Weight

• Size : 27x27mm
• Weight : 3.3g
