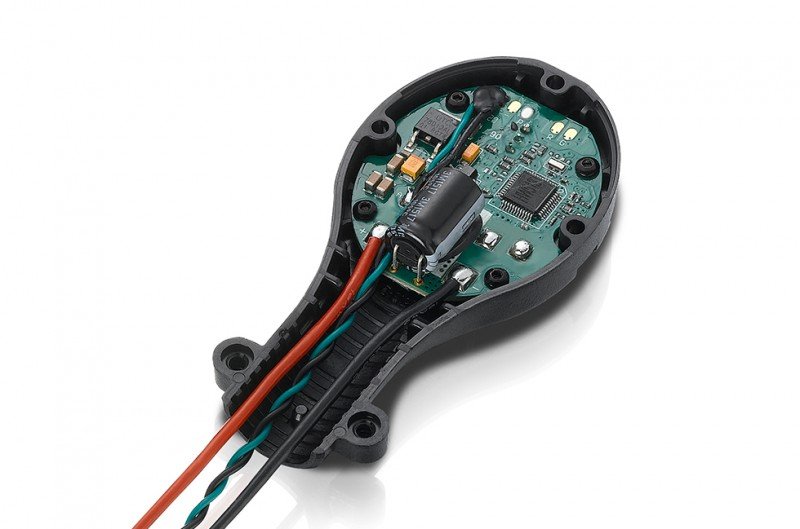

HOBBYWING XRotor PRO 25A Circular (Black Color)- 30902022  [HW-30902022]

Effortless Installation

Motor could possibly be closely installed on the ESC, which somewhat simplifies wiring and
installing the propulsion system.

Popular Choice

The mount is excellently appropriate the most used 16mm
(outer diameter) carbon fibre supply pipeline.

Exceptional Protection

The included framework the ESC and engine mount has
exceptional dustproof and splash evidence security.

DEO Technology

The DEO (Driving effectiveness Optimization) technology implemented
into the ESC has many advantages:
● Active braking. Whenever reducing the throttle amount, the motor will
decelerate quickly. This function enables pilots to easier
perform all maneuvers like razor-sharp turns, altitude changes, and
unexpected braking.
● greater driving effectiveness, much longer journey time.
● Lower ESC temperature and an even more dependable procedure .
* various businesses call this technology by various names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

A simple task to Use

Highly smart and adaptive standard settings like
auto-adjusting timing for easy procedure.

Item Specification

Product Number

Specifications

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : No

Features

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : not Supported
• Timing : Supported
• Light colors : Not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Engine Mount)
