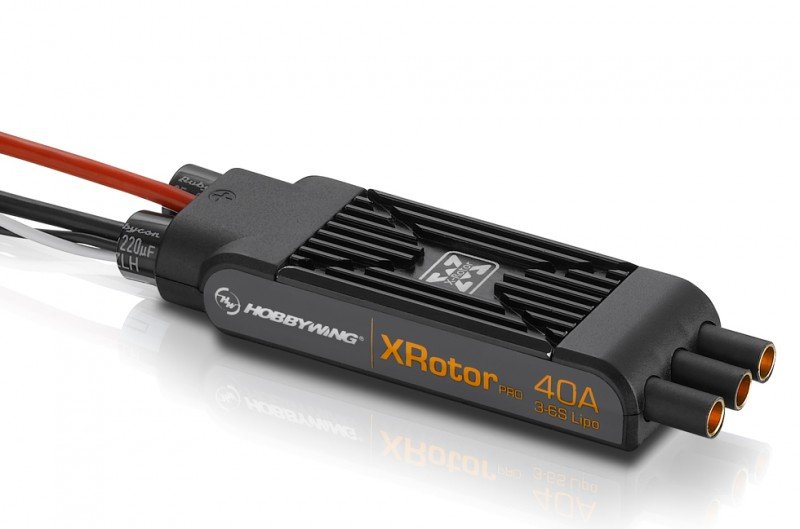

HOBBYWING XRotor Pro 40A (Version A) - 30902042  [HW-30902042]

Newly Designed Shape

A unique structural design that is enclosed within an
exquisite solid artificial example that provides the all-round protection
and security the ESC. The newly created ESC
is simply put into a carbon-fiber pipe utilising the I. D. of 23mm.

Vehicle Timing modification & Preset Parameters for Highly
smart Operation

Auto timing modification and preset parameters
applicable to the majority of applications extremely
simplify operation and optimize consumer experience.

Unique Core Program for fast Throttle
Response

The multi-rotor has made the need over ESC effect become even harsher than typical.
Our newly unique core system for quick throttle response price means a more stable hover and
quick movement during journey. Along with the XRotor 3D and expert show ESC’s groundbreaking quick reaction rate,
the ESC had been created for hard and fresh challenges comfortable.

Driving effectiveness Optimization(DEO)
Technology for Better Performance

Driving effectiveness Optimization (DEO) Technology is adopted for a heightened driving efficiency

Open Cooling Fin

A high-performance aluminum folded fin heat sink is combined
using the particularly produced heat-conductive slotted framework that
brings excellent heat-dissipating effect. This is an exceptionally
Simplified Operational Procedure.

Specifications

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output cables : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : not Supported

Size & Weight

• Size : 66.0x21.8x11.0mm
• Weight : 50g

Applications

• 550 Course Multirotors
